65-3530-26 Pricking Type Temperature Sensor BT Series -200~500°C Response Speed (sec): 3 E Type BT-92E-TC1-ASP
Product Description
Product Model: 65-3530-26Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3530-26
Product Brand: ANRITSU METER CO., LTD.
Features

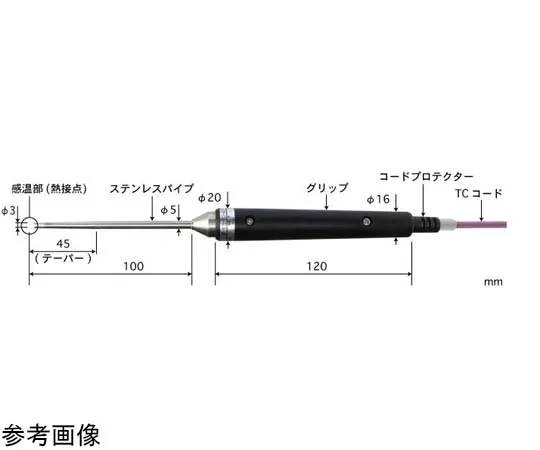

- The BT series has a thermal contact welded inside the needle tip, and is a piercing type temperature sensor suitable for measuring semi-solid objects.
- We also have a needle exchange type.
- [Application] Temperature control of resin and rubber before solidification, etc.
Spec
- Material: Pipe Material/Stainless Steel (SUS304), Grip Material/Nylon Resin
- Operating temperature range (°C): -200~500
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 3
- Durability: 1 year or more
- Needle Outer Diameter (φmm): 5
- Needle length (mm): 100
- Tip Shape: Conical Cut
- Thermocouple Type: E Type
- Cord length (m): 1
- Cord Outer Diameter (φmm): 4
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
