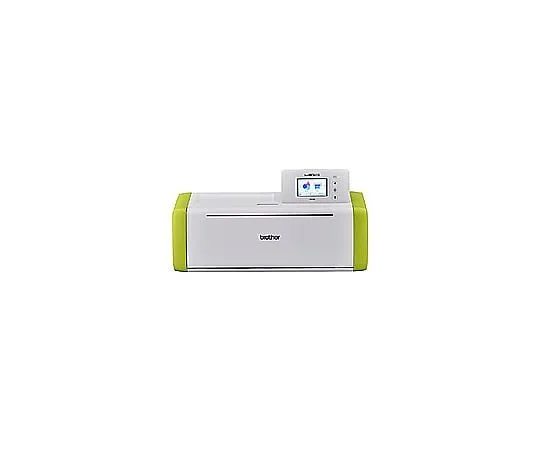

69-7497-43 Cutting Machine Scanncutdx (Scan Cut Dx) SDX85
Product Description
Product Model: 69-7497-43Product Brand: Brother Industr […]
Contact Us
Product Details
Product Model: 69-7497-43
Product Brand: Brother Industries, Ltd.
Features
- You can control "cut" freely.
- Brother's ScanCut DX cutting machine
- Cutting machine with built-in scanner.
- You can scan your favorite patterns, images, or handwritten illustrations and cut various materials from paper, stickers, to cloth.
- "Scan Cut DX" can cut 3 mm!
- Brother's ScanCut DX cutting machine can now cut materials up to 3mm in thickness, not only paper and cloth, but also urethane foam, leather, campus fabric, and other materials.
- Automatic Blade Function Equipped!
- Brother's conventional cutting machine "ScanCut" had to manually adjust the blade dep***ing on the material, but "ScanCut DX" can sense the thickness of the material and cut the material without adjusting the blade amount.
- *Dep***ing on the material and hardness, it may not be possible to cut.
- *For cutting thin paper, *** an optional soft adhesive cutting mat.
- *Use an optional adhesive cloth cutting mat or cloth cutting accessories to cut easily stretchy cloth materials.
- Touch LCD makes it easy to operate and work without a PC
- Equipped with a 3.47 inch touch panel, you can recall and edit over 250 types of internal patterns and original scanned data at any time.
- Error messages are also displayed on the LCD screen for intuitive operation.
- Accessories of the cutting machine "ScanCut" SDX85
- Strong Adhesive Cutting Mat (296 mm x 298 mm), Automatic Adjustment Replacement Blade (Holder Included), Spatula (for peeling off the attached sheet), Touch Pen,
- Accessory Pouch, Power Cord, Quick Reference, Getting Started Guide, Warranty
Spec
- Specification 1: [External Dimensions (Width x Depth x Height)] 53.1 x 21.5 x 17.3 cm
- [Body mass] 5.7 kg
- Power Consumption 49 W
- [Basic cut object] Cloth/Paper/Plavan/Urethane foam
- [LCD size] 3.47 inches
- [12 inch mat maximum cut size (width x depth)] 296 mm x 298 mm
- [24 inch mat maximum cut size (width x depth)] 296 mm x 603 mm
- [Wireless LAN Connection] Yes
- [Total number of internal patterns] 251
- Built-in Fonts 5
- Read SVG Data Yes
- Specification 2: [Automatic blade output adjustment] Yes
- Smoothing Function Yes
- Embroidery data read function ×
- [Operations such as scanning and cutting] Operations by the main unit (PC not required)
- PC or other application Yes (CanvasWorkspace)
- [USB host (USB flash drive connection)] Yes
- [USB Slave (PC connection)] Yes (Pattern can be recalled only via the PC version of CanvasWorkspace)
- [Maximum Memory] 1 MB
- Specification 3: [Roll sticker mattress transport] Yes (roll feeder sold separately required)
- [3 mm Cut (Felt, urethane foam)] Yes
