65-3530-12 General Temperature Sensor BS Series for Semisolids and Liquids -200~500°C Grip Type φ5 mm BS-51E-100-TC1-ASP
Product Description
Product Model: 65-3530-12Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3530-12
Product Brand: ANRITSU METER CO., LTD.
Features
- The BS series is a general-purpose internal temperature sensor.
- It can measure the internal temperature of various objects, including liquids and semi-solids.
- [Application] Temperature control and temperature measurement of resin in injection molding
- Temperature control and temperature measurement of fryers and oil
Spec
- Material: Pipe Material/Stainless Steel (SUS304), Grip Material/Polyacetal
- Operating temperature range (°C): -200~500
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 5
- Durability: 1 year or more

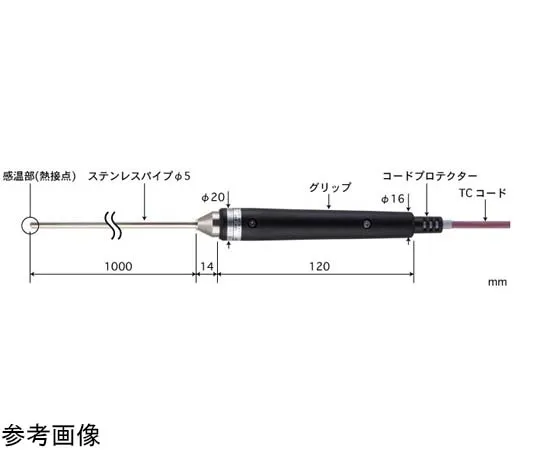

- Protective Tube Outer Diameter (φmm): 5
- Protection pipe appearance shapes: grip types
- With/without protective tube coating: No
- Thermocouple Type: E Type
- Length of protective tube (mm): 1000
- Cord length (m): 1
- Cord Outer Diameter (φmm): 4
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
