65-3530-10 General Temperature Sensor BS Series for Semisolids and Liquids -200~200°C Grip Type φ2.1 mm BS-22E-010-TC1-ASP
Product Description
Product Model: 65-3530-10Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3530-10
Product Brand: ANRITSU METER CO., LTD.
Features
- The BS series is a general-purpose internal temperature sensor.
- It can measure the internal temperature of various objects, including liquids and semi-solids.
- [Application] Temperature control and temperature measurement of resin in injection molding
- Temperature control and temperature measurement of fryers and oil
Spec
- Material: Pipe Material/Stainless Steel (SUS304), Grip Material/Polyacetal
- Operating temperature range (°C): -200~200
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 20
- Durability: 1 year or more

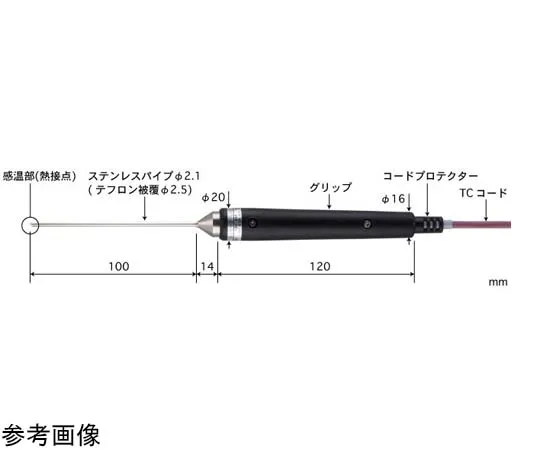

- Protective Tube Outer Diameter (φmm): 2.1
- protection pipe appearance shapes: grip types
- With/without protective tube coating: Yes
- Thermocouple Type: E Type
- Length of protective tube (mm): 100
- Cord length (m): 1
- Cord Outer Diameter (φmm): 4
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
