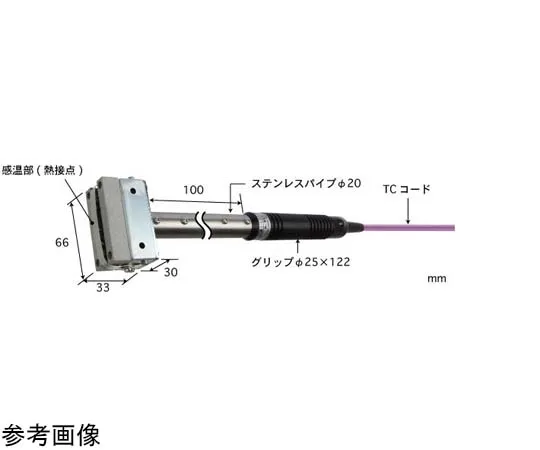

65-3530-02 Temperature Sensor for High Temperature Moving Surface Model 213 -50~600°C E Type 213E-TC1-ASP
Product Description
Product Model: 65-3530-02Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3530-02
Product Brand: ANRITSU METER CO., LTD.
Features
- Model 213/214/215/216/217 is a hot moving surface temperature sensor suitable for hot moving surfaces
- [Application] Surface temperature measurement of steel plate just after it comes out of furnace, etc.
- Measurement of steel plate surface temperature during rolling
- In addition, measurement of steel plate surface temperature during movement, etc.
Spec
- Material: Guard Material/Mica-Based Heat-Resistant Guard, Contact Plate Material/Stainless Steel Thickness 200 μm, Body Material/Mild Steel, Pipe Material/Stainless Steel (SUS316), Grip Material/Polyacetal
- Operating temperature range (°C): -50~600
- Tolerance at 0~200 deg. C (deg. C): ±2.5
- Response Time (sec): 5
- Durability: Over 1000 hours
- Pipe length (mm): 100
- Thermocouple Type: E Type
- Code Type: Standard Code
- Cord length (m): 1
- Plug Shape: Standard Plug
