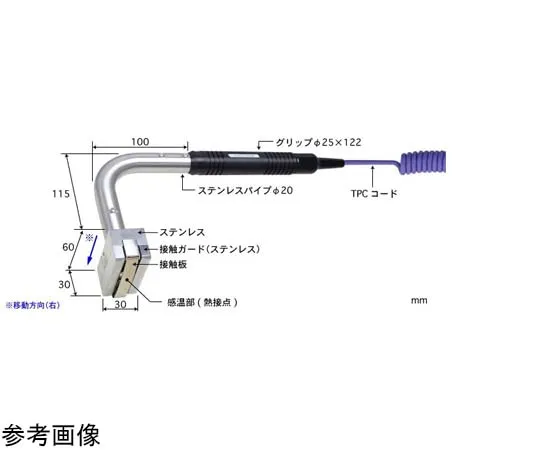

65-3529-95 Temperature Sensor for High Performance Moving Surfaces Contact Support Type SX Series -50~800°C Sliding Guard Type 90° E Type SX-593E-01-1-TPC1-ASP
Product Description
Product Model: 65-3529-95Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3529-95
Product Brand: ANRITSU METER CO., LTD.
Features
- The SX Series (SX-5**/SX-6**) is a high-performance temperature sensor for moving surfaces that ***s a 4 point support structure at the contact part to eliminate the effect of frictional heat as much as possible.
- The temperature sensing part follows and adheres to the object to be measured by the contact support function where the head moves, enabling easier temperature measurement.
- In addition, the cantilever structure reduces the deformation of the contact plate due to small deposits and distortion.
- There are 2 types of head, sliding guard type and contact roller type. The sliding guard type is available with stainless steel guard for high temperature (800°C) and mica-based heat-resistant guard for medium temperature (600°C).
- [Application] Preheating temperature control and temperature measurement of billets, etc.
Spec
- Material: Guard (Roller) Material/Stainless Steel Guard, Contact Plate Material/Inconel Thickness 100 μm, Body Material/Stainless Steel (SUS303), Pipe Material/Stainless Steel (SUS316), Grip Material/Polyacetal
- Operating temperature range (°C): -50~800
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 3
- Durability: At least 1000 hours at 600°C
- Head Shape: Slide Guard Type
- Pipe Shape: 90°
- Thermocouple Type: E Type
- Pipe length (mm): 100
- With/without grip: Yes
- Cord length (m): 1
- Cord Outer Diameter (φmm): 3.8
- Coating Material: Polyurethane
- Heat-resistant Temperature (°C): 110
- Plug Shape: Standard Plug
