65-3529-81 Temperature Sensor S Series for High Performance Moving Surfaces -50~600°C Slide Guard Type 90° E Type S-553E-01-1-TPC1-ASP
Product Description
Product Model: 65-3529-81Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3529-81
Product Brand: ANRITSU METER CO., LTD.
Features
- S Series (S-5**/S-6**) is a high-performance temperature sensor for moving surfaces that ***s a 4 point support structure at the contact part to eliminate the effect of frictional heat as much as possible.
- We can measure the surface temperature of a moving steel plate.
- In the cantilever type, one axis of the contact plate is fixed to prevent deformation of the contact plate due to deposits or distortion on the surface of the object to be measured.
- [Application] Temperature measurement of a die (die bonder) for semiconductor manufacturing equipment
- Induction heating steel burette surface temperature control and temperature measurement, etc.
- Temperature control and temperature measurement during the rolling process of metals and steel plates
- Measuring temperature between passes during welding
Spec

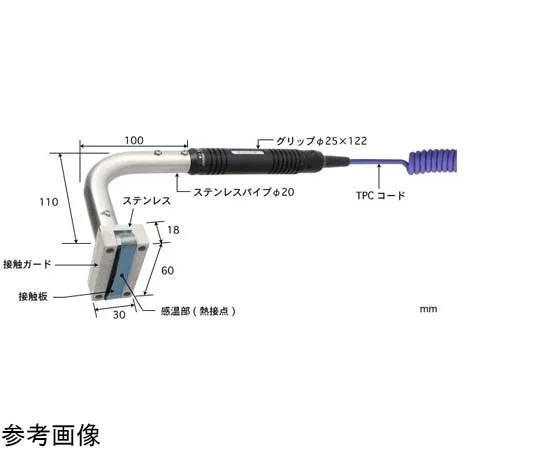

- Material: Guard (Roller) Material/Mica-based Heat-Resistant Guard, Contact Plate Material/Inconel Thickness 100 μm, Body Material/Stainless Steel (SUS303), Pipe Material/Stainless Steel (SUS316), Grip Material/Polyacetal
- Operating temperature range (°C): -50~600
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 3
- Durability: At least 1000 hours at 600°C
- Head Shape: Slide Guard Type
- Pipe Shape: 90°
- Thermocouple Type: E Type
- Pipe length (mm): 100
- With/without grip: Yes
- Cord length (m): 1
- Cord Outer Diameter (φmm): 3.8
- Coating Material: Polyurethane
- Heat-resistant Temperature (°C): 110
- Plug Shape: Standard Plug
