65-3529-65 Running Line Temperature Sensor MW Series -50~250°C φ0.65~1 mm E Type MW-31E-TC1-ASP
Product Description
Product Model: 65-3529-65Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3529-65
Product Brand: ANRITSU METER CO., LTD.
Features
- MW Series is a temperature sensor for running lines.
- We can measure the temperature of the surface of the wire while it is running.
- [Application] For temperature control and temperature measurement of electric wires and wires while running
Spec

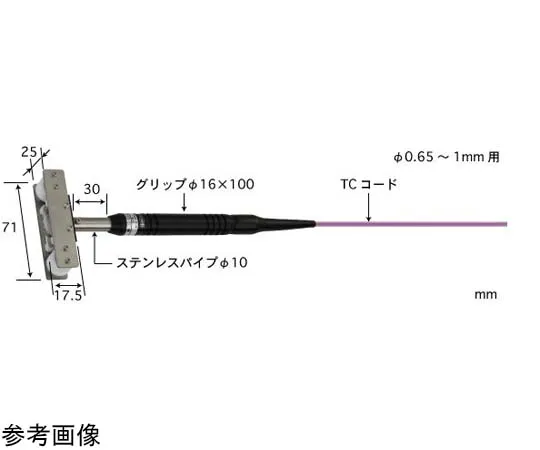

- Material: Roller Material/Teflon, Guard Material/Teflon, Roller Mounting Plate Material/Stainless Steel (SUS304), Pipe Material/Stainless Steel (SUS316), Grip Material/Polyacetal
- Operating temperature range (°C): -50~250
- Tolerance at 0~200 deg. C (deg. C): ±2.5
- Response Time (sec): 5
- Head Size (φmm): 0.65~3
- Roller Shape (φmm): 0.65~1
- Thermocouple Type: E Type
- Cord length (m): 1
- Cord Outer Diameter (φmm): 4
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
