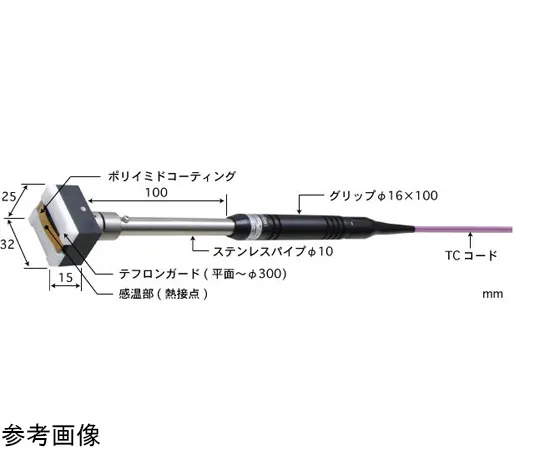

65-3529-41 Temperature Sensor for Moving/Rotating Surface Contact Support Type UX Series -50~250°C Guard Type (Teflon) 25 x 32 E Type Straight, Parallel UX-111E-01-D0-1-TC1-ASP
Product Description
Product Model: 65-3529-41Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3529-41
Product Brand: ANRITSU METER CO., LTD.
Features
- The UX series is a moving/rotating surface temperature sensor suitable for measuring the temperature of moving/rotating surfaces.
- Also, with contact support, it is hard to shake and adheres easily to the object to be measured even when it is held against the moving body.
- [Application] Surface temperature control of laminate roller
Spec
- Material: Pipe Material/Stainless Steel (SUS316), Grip Material/Polyacetal
- Operating temperature range (°C): -50~250
- Tolerance at 0~200 deg. C (deg. C): ±2.5
- Response Time (sec): 2
- Durability: Over 1500 hours
- Head Size (mm): 25 x 32
- Head Shape: Guard Type (Teflon)
- pipe shapes: straight, parallel
- Thermocouple Type: E Type
- Pipe length (mm): 100
- guard shapes: for planar faces
- With/without grip: Yes
- Cord length (m): 1
- Cord Outer Diameter (φmm): 4
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
