65-3529-24 R Surface Type Temperature Sensor Model 123 -50~250°C E Type 123E-50-TC1-ASP
Product Description
Product Model: 65-3529-24Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3529-24
Product Brand: ANRITSU METER CO., LTD.
Features

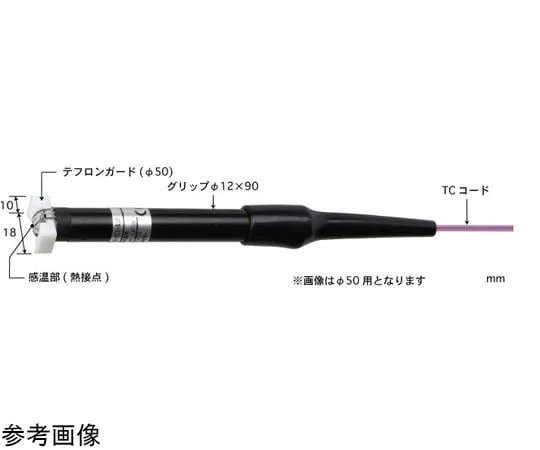

- Model 123 is a surface temperature sensor suitable for pipe surfaces and small curved surfaces.
- The shape of the guard can be manufactured to match the curved surface up to φ9~100 mm.
- [Application] Temperature control and temperature measurement of piping surfaces, etc.
Spec
- Material: Guard Material/Teflon, Grip Material/Black Phenol Resin
- Operating temperature range (°C): -50~250
- Tolerance at 0~200 deg. C (deg. C): ±2.5
- Response Time (sec): 2
- Durability: 10,000 cycles or more
- Please indicate the shape of the guard (φmm): 9~100
- Thermocouple Type: E Type
- Code Type: Standard Code
- Cord length (m): 1
- Plug Shape: Standard Plug
