65-3529-20 Pipe Outer Surface Type Temperature Sensor Model 528 -50~210°C E Type Hook Type 528E-TC1-ASP
Product Description
Product Model: 65-3529-20Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3529-20
Product Brand: ANRITSU METER CO., LTD.
Features

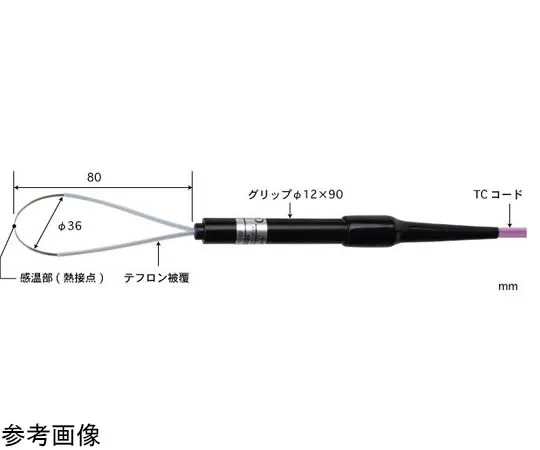

- Model 528 is a temperature sensor that measures temperature by hooking the temperature measuring part to a pipe (applicable pipe diameter φ20~50 mm).
- You can measure the surface temperature of a pipe by hooking it.
- [Application] Pipe surface temperature measurement, etc.
Spec
- Material: Guard Material/Black Phenol Resin
- Operating temperature range (°C): -50~210
- Tolerance at 0~210 deg. C (deg. C): ±2.5
- Response Time (sec): 3
- Durability: 10,000 cycles or more
- Shape: Hook Type
- Thermocouple Type: E Type
- Code Type: Standard Code
- Cord length (m): 1
- Plug Shape: Standard Plug
