65-3529-16 Pipe Inner Surface Type Temperature Sensor Model 305 -50~220°C E Type Approx. 100° 305E-TC1-ASP
Product Description
Product Model: 65-3529-16Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3529-16
Product Brand: ANRITSU METER CO., LTD.
Features

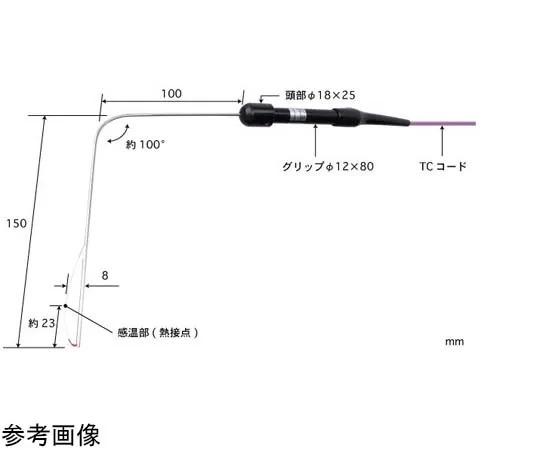

- Model 305/344 is a pipe inner surface type temperature sensor capable of measuring the inner surface of pipes with an inner diameter of 8 mm or more.
- [Application] Temperature measurement of pipe inner surface, etc.
Spec
- Material: Pipe Material/Stainless Steel (SUS304), Grip Material/Black Phenol Resin
- Operating temperature range (°C): -50~220
- Tolerance at 0~100 deg. C (deg. C): ±2.5
- Response Time (sec): 2
- Durability: Over thousands of cycles
- Pipe Shape: Approx. 100°
- Thermocouple Type: E Type
- Code Type: Standard Code
- Cord length (m): 1
- Plug Shape: Standard Plug
