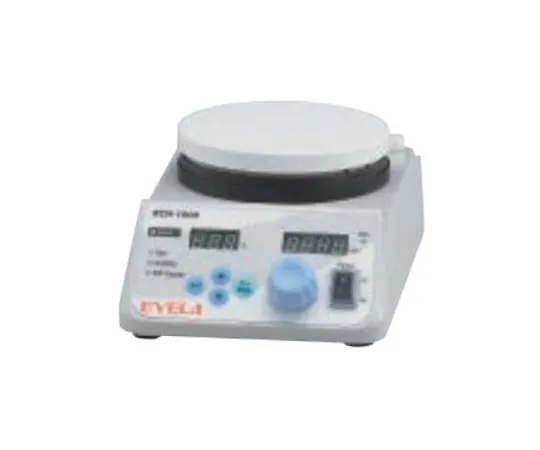

65-0575-18 Magnetic stirrer with hot plate RCH-1000
Product Description
Product Model: 65-0575-18Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 65-0575-18
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- Safe and clean research environment free from oil spatter, smoke and fire - This synthesizer is composed of aluminum block BBS type and magnetic stirrers with hot plates RCH-1000 and RCH-3 type with a unique structure with heat transfer performance equal to or better than that of oil. Beca*** it is a dry type, there is no danger or splashing due to oil and it can be ***d safely and cleanly. Aluminum blocks and optional parts can be selected according to the research objectives, making it possible to combine various configurations such as container size and type.
- Maintain a clean and safe research environment without the need to worry about oil spills, splatters, smoke, and fires when using oil, or change oil.
- The aluminum block has a structure that automatically adjusts the diameter in response to variations in the finish of a glass container such as a flask and expansion/contraction ca***d by heat. (PAT) The aluminum block is coated with white anodized aluminum for enhanced chemical resistance and has 2 temperature sensor insertion holes (3.2 mm in diameter).
Spec
- Performance:
- Temperature adjustment range: Max. 310 degrees C (plate surface)
- Temperature control accuracy: +/- 1 degrees C
- Speed range: 50 ~ 1500 rpm (no load)
- Stirring capacity: 10 mL to 20 L (water)
- Features:
- Temperature control: P.I.D control (aluminum block/plate switchable by sensor)
- Temperature setting and display: Sheet key input, minimum setting digit 1 degree C, digital display
- Rotation speed setting and display: Volume Digital
- Safety features: F***, temperature f***, self-diagnostic (upper limit limiter)
- Configuration:
- Motor: DC Brushless motor output 25 W
- Magnet: Neodymium
- Heater: 600 W
- Stirring table material and dimensions (mm): die-cast aluminum, ceramic coating, phi 135
- Power input/voltage: 6.3 A, 630 VA/AC 100 V 50/60 Hz
- *Performance is measured at room temperature of 20 degrees Celsius, rated power supply voltage of 50 Hz and no load.
- *When using the BBS -3 HLD model, *** it within the rotation speed range of 400 rpm or more. Choose the BBS -1 HLD type if you need slow rotation.
- Accessories: External temperature sensor, heat cut plate for BBS
- Code: 264280
