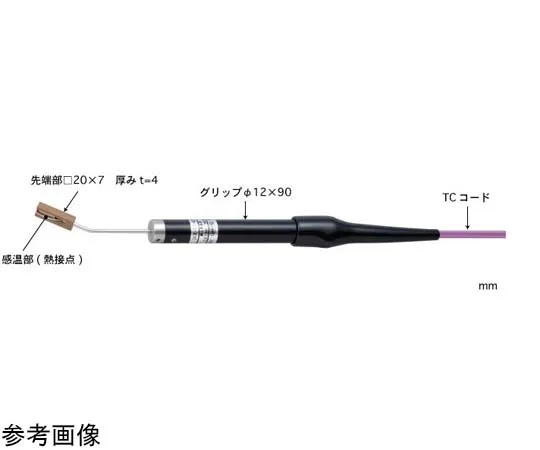

65-3529-14 Temperature Sensor for Micro Surface (Plug Type) Model 343 -50~250°C E Type 30° 343E-TC1-ASP
Product Description
Product Model: 65-3529-14Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3529-14
Product Brand: ANRITSU METER CO., LTD.
Features
- Model 310/343 is a temperature sensor for micro surface (plug in type) which can measure the side of inserted gap.
- [Application] Measurement of temperature distribution of IC packages, etc.
- Surface temperature measurement of printed circuit boards, etc.
- surface temperature measurement of the cooler fin
- Other measurements of surface temperature of electronic components
Spec
- Material: Guard Material/Sumika Super, Pipe Material/Stainless Steel (SUS304), Grip Material/Black Phenol Resin
- Operating temperature range (°C): -50~250
- Tolerance at 0~200 deg. C (deg. C): ±2.5
- Response Time (sec): 0.5
- Durability: 10,000 cycles or more
- Pipe Shape: 30°
- Thermocouple Type: E Type
- Code Type: Standard Code
- Cord length (m): 1
- Plug Shape: Standard Plug
