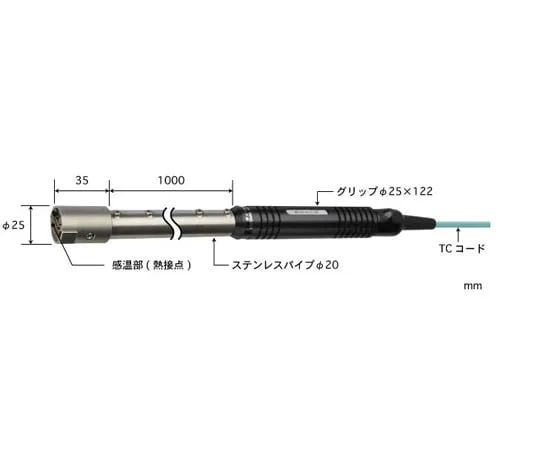

65-3528-90 Durable Type Temperature Sensor for High-Temperature Surfaces HHT Series 300~1100°C Pipe Shape: Straight K Type HHT-51K-10-TC1-ASP
Product Description
Product Model: 65-3528-90Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3528-90
Product Brand: ANRITSU METER CO., LTD.
Features
- The HHT series is a durable type temperature sensor for high-temperature surfaces, capable of measuring temperatures above 800°C
- [Application] Measurement of surface temperature of slab (steel), etc.
Spec
- Material: Guard Material/Stainless Steel (SUS303), Pipe Material/Stainless Steel (SUS316), Grip Material/Polyacetal
- Operating temperature range (°C): 300~1100
- Tolerance at 500 deg. C (deg. C): ±3.8
- Response Time (sec): 5
- Durability: More than 60,000 cycles at 800°C
- pipe shapes: straight
- Thermocouple Type: K Type
- Pipe length (mm): 1000
- Cord length (m): 1
- Cord Outer Diameter (φmm): 4
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
