65-3528-87 High Performance Heavy Duty Static Surface Temperature Sensor S Series -50~600°C E Type S-780E-GW1-ASP
Product Description
Product Model: 65-3528-87Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3528-87
Product Brand: ANRITSU METER CO., LTD.
Features

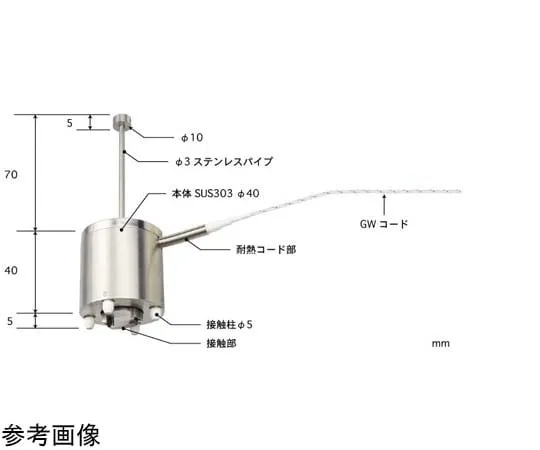

- The S Series (S-7**) is a high-performance self-weight temperature sensor with a head shape of φ40 mm and a mass of approximately 380 g that enables stable measurement.
- [Application] Temperature measurement of a die (die bonder) for semiconductor manufacturing equipment
- Induction heating steel burette surface temperature control and temperature measurement, etc.
- Temperature control and temperature measurement during the rolling process of metals and steel plates
- Measuring temperature between passes during welding
Spec
- Weight: about 380 g
- Material: Contact Column Material/Ceramic, Contact Plate Material/Inconel 50 μm, Body Material/Stainless Steel (SUS303)
- Operating temperature range (°C): -50~600
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 1
- Durability: More than 60,000 cycles at 600°C
- Type of contact: high temperature contact
- Thermocouple Type: E Type
- Cord length (m): 1
- Cord Outer Diameter (mm): 1.2 x 1.7
- Coating Material: Glass Fiber
- Heat-resistant Temperature (°C): 300
- Plug Shape: Standard Plug
