65-3528-85 High Performance Temperature Sensor for Micro Surface S Series -50~800°C High Temperature Type Pipe Shape: 90° Type E S-423E-01-1-TPC1-ASP
Product Description
Product Model: 65-3528-85Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3528-85
Product Brand: ANRITSU METER CO., LTD.
Features
- S Series (S-4**) is a high-performance temperature sensor with □6 x 7 mm head shape, high responsiveness and high durability.
- [Application] Temperature measurement of a die (die bonder) for semiconductor manufacturing equipment
- Induction heating steel burette surface temperature control and temperature measurement, etc.
- Temperature control and temperature measurement during the rolling process of metals and steel plates
- Measuring temperature between passes during welding

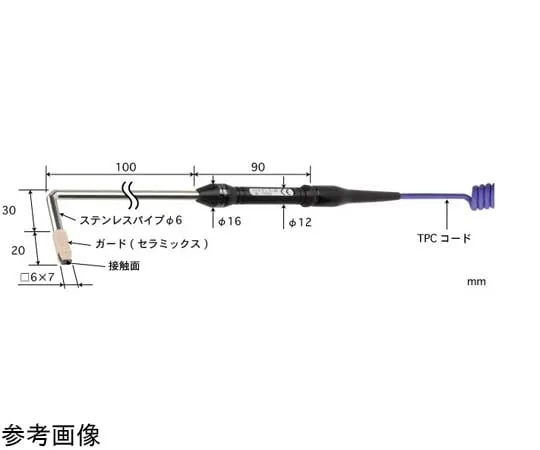

Spec
- Material: Head Material/Ceramic, Pipe Material/Stainless Steel (SUS304), Contact Plate Material/Inconel Thickness 50 μm, Grip Material/Polyacetal
- Operating temperature range (°C): -50~800
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 1
- Durability: More than 60,000 cycles at 800°C
- Head Size (mm): 6 x 7
- Head Type: High Temperature Type
- Pipe Shape: 90°
- Type of thermocouple: Type E
- Pipe length (mm): 100
- With/without grip: Yes
- Cord length (m): 1
- Cord Outer Diameter (φmm): 3.8
- Coating Material: Polyurethane
- Heat-resistant Temperature (°C): 110
- Plug Shape: Standard Plug
