65-3528-49 Temperature Sensor with Built-in Magnet MG Series -50~400°C Type E Head Shape: Type 64 MG-64E-GW1-ASP
Product Description
Product Model: 65-3528-49Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3528-49
Product Brand: ANRITSU METER CO., LTD.
Features
- The MG Series is a temperature sensor suitable for measuring surfaces that can be fixed with magnets, such as equipment and mold surfaces.
- [Application] Surface temperature measurement of motors and engines, etc.
Spec

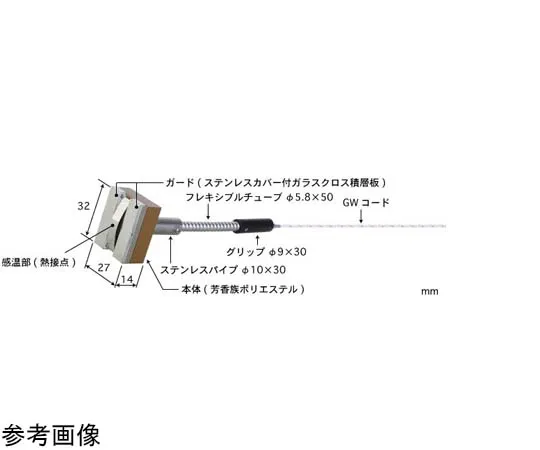

- Material: Guard Material/Glass Cloth Laminate with Stainless Steel Cover, Body Material/Aromatic Polyester
- Operating temperature range (°C): -50~400
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 2
- Durability: 50,000 cycles or more
- Head Shape: Type 64
- Type of thermocouple: Type E
- With/without grip: None
- Cord length (m): 1
- Cord Outer Diameter (mm): 1.2 x 1.7
- Coating Material: Glass Fiber
- Heat-resistant Temperature (°C): 300
- Plug Shape: Standard Plug
