65-3528-48 Temperature Sensor with Built-in Magnet MG Series -50~250°C Type K Head Shape: Type 11 MG-11K-TS1-ASP
Product Description
Product Model: 65-3528-48Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3528-48
Product Brand: ANRITSU METER CO., LTD.
Features
- The MG Series is a temperature sensor suitable for measuring surfaces that can be fixed with magnets, such as equipment and mold surfaces.
- [Application] Surface temperature measurement of motors and engines, etc.
Spec

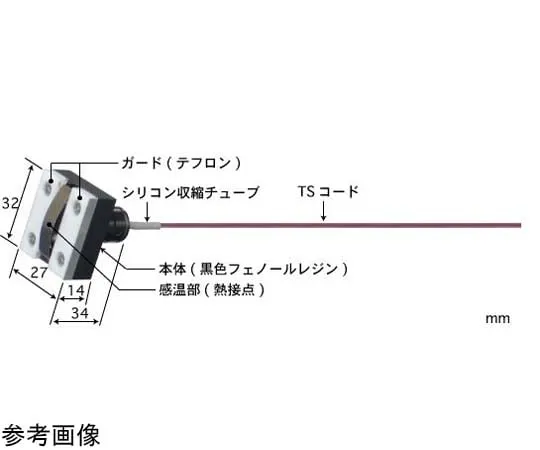

- Material: Guard Material/Teflon, Body Material/Black Phenol Resin
- Operating temperature range (°C): -50~250
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 2
- Durability: 50,000 cycles or more
- Head Shape: Type 11
- Type of thermocouple: Type K
- With/without grip: Yes
- Cord length (m): 1
- Cord Outer Diameter (φmm): 2.3
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
