65-3528-47 Magnet Built-in Temperature Sensor MG Series -50~250°C Type E Head Shape: Type 11 MG-11E-TS1-ASP
Product Description
Product Model: 65-3528-47Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3528-47
Product Brand: ANRITSU METER CO., LTD.
Features
- The MG series is a temperature sensor suitable for measuring surfaces that can be fixed with magnets, such as the surfaces of devices and molds. 【 Application 】 Surface temperature measurement of motors and engines, etc.
Spec

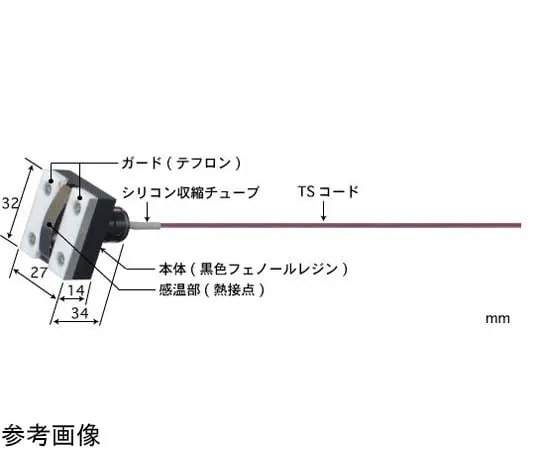

- Material: Guard Material/Teflon, Body Material/Black Phenol Resin
- Operating temperature range (°C): -50~250
- Tolerance (deg. C) at 100 deg. C: +/- 2.5
- Response speed (seconds): 2
- Durability: 50,000 times or more
- Head Shape: Type 11
- Thermocouple Type: Type E
- With/without grip: Yes
- Cord length (m): 1
- Cord Outer Diameter (φmm): 2.3
- Coating Material: Silicon
- Heat resistant temperature (°C): 240
- plug geometry: standard plugs
