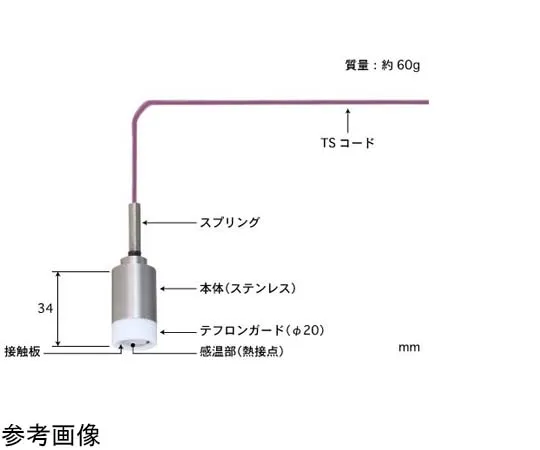

65-3528-33 Self-Weight Temperature Sensor WE Series -50~250°C Type E Head Size: Type 11 WE-11E-TS1-ASP
Product Description
Product Model: 65-3528-33Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3528-33
Product Brand: ANRITSU METER CO., LTD.
Features
- The WE series can easily measure the temperature by placing it on the sensor due to the weight of the sensor itself.
- [Application] For measuring the surface temperature of hot plates
Spec
- Material: Main Material/Stainless Steel (SUS303)
- Operating temperature range (°C): -50~250
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 1
- Durability: 50,000 cycles or more
- Head Size: Type 11
- Type of thermocouple: Type E
- With/without grip: Yes
- Cord length (m): 1
- Cord Outer Diameter (φmm): 2.3
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
