65-3528-31 Thin/Narrow Groove Temperature Sensor TH Series -50~500°C Type E Head Shape: Type 14 TH-14E-010-1-TC1-ASP
Product Description
Product Model: 65-3528-31Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3528-31
Product Brand: ANRITSU METER CO., LTD.
Features
- The TH series is a temperature sensor that can be inserted into gaps and grooves to measure the surface temperature of the side and bottom surfaces.
- [Application] Temperature control and temperature measurement during heat sink performance tests, etc.
Spec
- Material: Grip Material/Polyacetal
- Operating temperature range (°C): -50~500
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 2
- Durability: 50,000 cycles or more

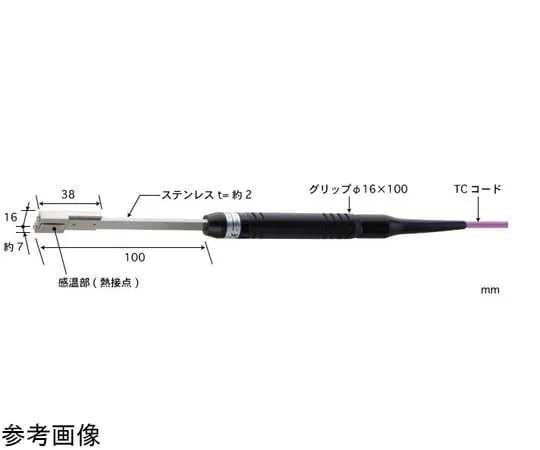

- Head Shape: Type 14
- Type of thermocouple: Type E
- Head length (mm): 100
- With/without grip: Yes
- Cord length (m): 1
- Cord Outer Diameter (φmm): 4
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
