65-3528-20 Temperature Sensor for Micro Surface CS Series -50~400°C Type K 3φmm CS-01K-010-1-TC1-ASP
Product Description
Product Model: 65-3528-20Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3528-20
Product Brand: ANRITSU METER CO., LTD.
Features
- The CS Series is a temperature sensor for micro surfaces with a small temperature measuring section.
- We can measure the surface temperature of any object, not just electronic substrates.
- [Application] Heat generation temperature control and temperature measurement of electronic components on board
Spec

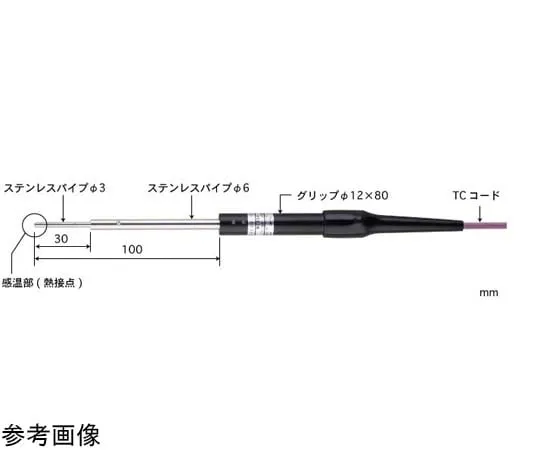

- Material: Pipe Material/Stainless Steel (SUS304), Grip Material/Black Phenol Resin
- Operating temperature range (°C): -50~400
- Tolerance at 100 deg. C (deg. C): ±3.0
- Response Time (sec): 3
- Durability: 50,000 cycles or more
- Head Tip Shape (φmm): 3
- Pipe Shape: Type 1
- Type of thermocouple: Type K
- Pipe length (mm): 100
- With/without grip: Yes
- Cord length (m): 1
- Cord Outer Diameter (φmm): 4
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
