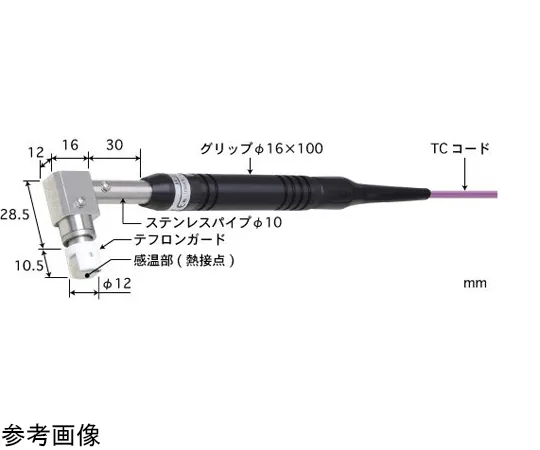

65-3528-11 Temperature Sensor Contact Support for Static Surfaces Type AX Series -50~300°C Type E Elbow, Parallel AX-314E-00-1-TC1-ASP
Product Description
Product Model: 65-3528-11Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3528-11
Product Brand: ANRITSU METER CO., LTD.
Features
- The AX series is a temperature sensor with a ±4° contact support function that allows the sensor's temperature sensing part to follow and adhere to the object to be measured.
- The contact support function maintains close contact between the object to be measured and the sensor against camera shake during measurement by tilting the head in all directions.
- Back up correct temperature measurement to improve production efficiency
- [Application] Surface temperature control and temperature measurement of resin molded metal molds
- Surface temperature control and temperature measurement of iron plate
- Temperature control and temperature measurement during asphalt paving
Spec
- Material: Pipe Material/Stainless Steel (SUS316), Grip Material/Polyacetal
- Operating temperature range (°C): -50~300
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 1.5
- Durability: 75000 cycles or more
- Head Size (φmm): 12
- Coating of Guard Material and Contact Plate: Teflon Guard (Standard)
- Pipe shape and contact plate orientation: elbow, parallel
- Type of thermocouple: Type E
- Pipe length (mm): 30
- With/without grip: Yes
- Cord length (m): 1
- Cord Outer Diameter (φmm): 4
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
