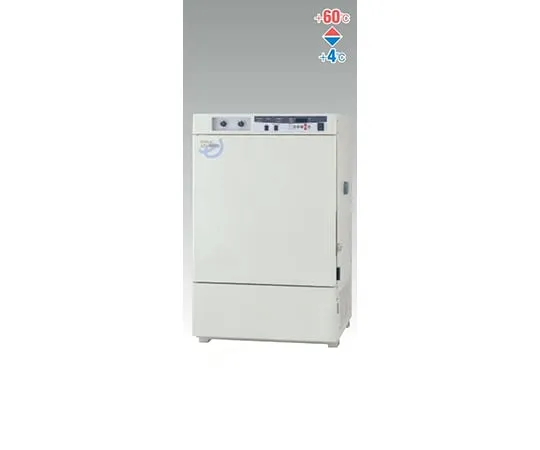

65-0574-12 Low temperature thermostat Rotemplate Incubator Approx. 90 L LTI-400E
Product Description
Product Model: 65-0574-12Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 65-0574-12
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- Air Jacket Type for Low Temperature Culture: Air Jacket Type Cold Temperature Constant Thermometer, Convection Type Can Be Changed: Temperature control for constant temperature culture is performed in the air jacket, which is separate from the inside of the cabinet, so stable temperature distribution and control are possible, and damage to the sample ca***d by dry air is suppressed. It also has a fan that can be turned ON and OFF, and can be ***d as a forced convection system dep***ing on the application.
- The temperature regulator is equipped with an indep***ent overheating and undercooling preventer.
- Since the structure suppresses frosting, continuous operation (2 months, approx. 1500 hours/setting 4°C) can be performed for a long time without defrosting even in CONT. mode. (Slightly dep***s on usage)
- The camera is equipped with a service outlet and can be cultured with a shaker.
- Timer function (Auto Start, Auto Stop) is provided as standard to improve the efficiency of working time.
- The one-step program function shifts to the storage temperature after incubation. The 24 hour cycle program function enables day/night operation and repeated tests.
- The shelf board can be removed, so it is easy to clean inside.
- With the included hatch clip with keyhole, the door can be locked with a commercially available key (padlock hole diameter 6.5 mm).
Spec
- Convection system: Air jacket type natural convection system and forced convection system combined
- Performance:
- Temperature adjustment range: 4 ~ 60 degrees C
- Temperature control accuracy: +/- 0.2 degrees C (CONT. Mode), +/- 1.0 degrees C (INT. MODE)
- Temperature distribution accuracy: +/- 1.0 degrees C (CONT mode at 20 ~ 37 deg.), +/- 2.0 degrees C (INT mode at 20 ~ 37 deg.)
- Features:
- Temperature control: CONT. mode (Heater P.I.D control + refrigerator continuous operation), INT. mode (Heater P.I.D control + Refrigerator continuous operation + Hot gas)
- Temperature setting and display: Sheet key input and digital display
- Defrosting function: Automatic control (INT. MODE), forced manual operation (Manual Start, Automatic Stop, Manual Stop)
- Timer function: Auto start, Auto stop
- Program functions: 1 step program, 24 hour period program
- Configuration:
- Heater: 550 W
- Refrigerator/Refrigerant: Air-cooled 160 W/R 134 a
- Standard:
- Interior Dimensions (mm)/Capacity: 500 W x 400 D x 450 H/Approximately 90 L
- Shelf Board Load Capacity, Material: Equal Distribution Max. 15 kg/sheet, PE Coating
- Shelf Plates Included: 2
- Shelf Pitch/Number of Racks: 40 mm/8 Racks
- Interior: SUS 430 J 1 L
- Cable hole: 2 right and left inside diameter 40 mm
- Service outlets: 3 units 2A/1A (inside 2 units), 2A (outside 1 unit)
- Inner door: 1 piece acrylic
- Operating ambient temperature range: 5 ~ 35 degrees C
- External dimensions (mm), Mass: 630 (662) W x 705 D x 900 H, approx. 85 kg
- Power input/voltage: 9 A, 900 VA/AC 100 V 50/60 Hz
- *Performance is measured at room temperature of 20 degrees Celsius, rated supply voltage, 50 Hz and no load.
- *The difference between the set temperature and the measured temperature may be up to 2 degrees Celsius when the temperature is set to 37 degrees Celsius.
- *During defrosting operation in INT. mode, the temperature may 50.0 vary from -1.0 to + 2.0 degrees Celsius (Room temperature: 20 degrees Celsius, unloaded). The internal temperature changes every 2 hours for 20 ~ 30 minutes.
- *() dimensions include protrusions.
- Code: 210400
