65-3527-98 Temperature Sensor for Static Surface Type A Series -50~500°C Type E 90°, Parallel 100 mm A-233E-01-1-TC1-ASP
Product Description
Product Model: 65-3527-98Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3527-98
Product Brand: ANRITSU METER CO., LTD.
Features
- A-Series is a general-purpose temperature sensor for stationary surfaces.
- We can measure the surface temperature of any object, not just the mold surface.
- [Application] Surface temperature control and temperature measurement of resin molded metal molds
- Surface temperature control and temperature measurement of iron plate
- Temperature control and temperature measurement during asphalt paving
Spec
- Material: Pipe Material/Stainless Steel (SUS316), Grip Material/Polyacetal
- Operating temperature range (°C): -50~500
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 1.5
- Durability: 75000 cycles or more

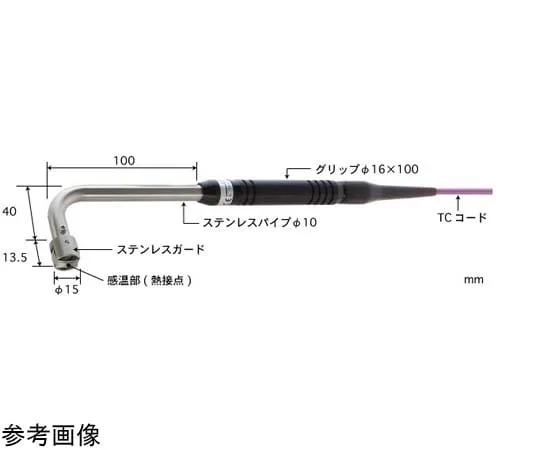

- Head Size (φmm): 15
- Guard Material and Contact Plate Coating: Stainless Steel Guard (Standard)
- Pipe shape and contact plate orientation: 90 deg., parallel
- Type of thermocouple: Type E
- Pipe length (mm): 100
- With/without grip: Yes
- Cord length (m): 1
- Cord Outer Diameter (φmm): 4
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
