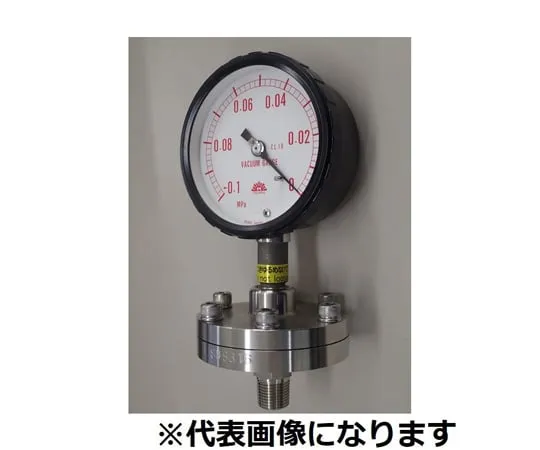

65-3525-69 Diaphragm Type Vacuum Gauge Screw Type A Pressure Range (MPA)-0.1 841-S-AD-3-5X-0.1MPA
Product Description
Product Model: 65-3525-69Product Brand: Asahi Gauge Man […]
Contact Us
Product Details
Product Model: 65-3525-69
Product Brand: Asahi Gauge Manufacturing
Features
- Special corrosion-resistant materials such as stainless steel, tantalum and Teflon can be ***d for the diaphragm material.
- You can also select a specification that allows remote measurement by connecting the pressure receiving unit and the indicator with a lead.
- As it is equipped with a zero point adjustment pointer as standard, correction of temperature and other errors can be made easily.
- Flanges are connected by intermediate pipes, so there is no limit on flange size.
Spec
- Mounting Method: Screw Type
- Case Type: A-Type
- Mounting Style Classes: Direct
- Connection: G3/8
- Indicator Part Size (φ): 100
- Indicator Part Shape: A-Type
- Wetted Part Material: SUS316
- Diaphragm Material: SUS316L
- Encapsulation: Silicone oil
- Silicon oil pressure receiving part permissible temperature: -40~200°C(Negative pressure and coupling ...-5~ 45°C)
- Pressure range (MPA): -0.1
