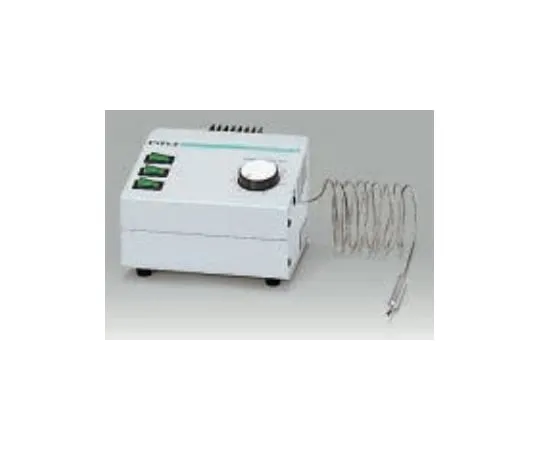

65-0573-88 Temperature Controller (Thermocontroller) - 10 ~ 50 deg C THS-10
Product Description
Product Model: 65-0573-88Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 65-0573-88
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- Can be ***d in a wide range of temperatures up to -60~50°C. Since the refrigerator can be turned ON and OFF, the temperature can be controlled directly by connecting it to the injection cooler.
Spec
- Performance:
- Temperature adjustment range: - 10 ~ 50 degrees C
- Temperature control accuracy: +/- 1.0 ~ 2.5 degrees C
- Features:
- Temperature Control: Heater, Refrigerator Alternate Control
- Temperature setting and display: Volume setting
- Standard:
- Heater output range ***d: 100 VAC, 300 W to 1.4 kW
- Cooler output range ***d: 100 VAC, 300 W to 1.4 kW
- Stirrer output range ***d: 100 VAC, Max. 50 W
- Configuration:
- Temperature controller: liquid expansion type
- Temperature sensor: Liquid expansion sensor
- Operating ambient temperature range: 5 ~ 40 degrees C
- External dimensions (mm): 180 (215) W x 150 (178.5) D x 123 H
- Mass: 2.8 kg
- Power input: 15 A, 1.5 kVA
- Power supply voltage: 100 VAC 50/60 Hz
- *The total output of the heater and cooler should not exceed 1.4 kW.
- *Dimensions in parentheses include projections.
- Code: 114570
