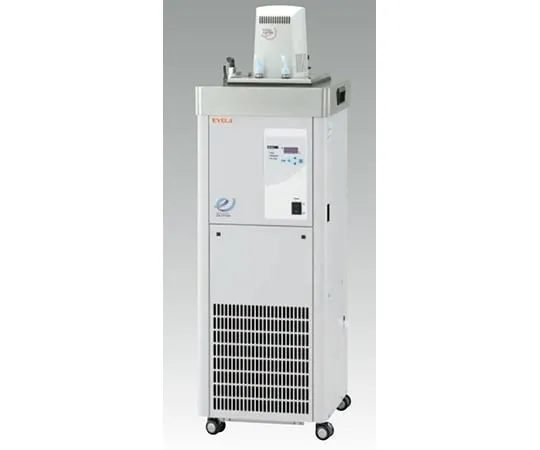

65-0573-54 Cooling aspirator CA-1116US
Product Description
Product Model: 65-0573-54Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 65-0573-54
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- Simultaneously reduce pressure and cool down
- Set the aspirator tank in the cooling water circulation device
- The aspirator tank is installed in the cooling water tank, and the aspirator tank is cooled by the cooling water tank. The cooling of the aspirator tank is stabilized to increase the vacuum reached, and the coolant of the cooling tank is circulated to the outside. This unit reduces pressure and cools at the same time.
- Designed to reduce foam entrainment to reduce noise.
- The cooling water is supplied to the evaporator and the depressurization concentrator at the same time as the depressurization.
- The refrigerator is powerful 650 W and has 2 aspirator suction ports, so it can cool and depressurize 2 rotary evaporators. *When connecting to two units, stop valves (commercially available) are required for each pressure reduction line.
- The pump part of the aspirator is made of PP resin and fluororubber packing. The aspirator tank and cooling water tank are made of SUS304 and have excellent chemical resistance.
- The aspirator tank and cooling tank are separate and indep***ent. Even if organic solvents are contained by suction, the water in the aspirator tank can be treated as waste liquid, so it can be ***d for wastewater countermeasures.
Spec
- Exhaust system: pressurized circulation system with water flow pump
- Performance:
- Temperature control range: - 20 ~ 30 C (without heater)
- Temperature control accuracy: +/- 2 degrees C
- Cooling capacity: 1200 W (1030 kcaL/h) Liquid temperature set at 10 degrees C
- External circulation capacity: maximum flow rate 12/14 L/min, maximum head 9.5/13 m (50/60 Hz)
- Maximum exhaust speed: 16/19 L/min (50/60 Hz) (water temperature: 6 degrees C)
- Features:
- Temperature control: Refrigerator ON-OFF control
- Temperature setting and display: Sheet key input, minimum digit 1 degree C, digital display
- Safety functions: Leakage/overcurrent breaker, refrigerator high-pressure switch, overload relay holding circuit, refrigerator protection timer, f*** for service outlet, temperature controller self-diagnostic function, circulating pump thermal protector
- Included features: Temperature display correction, flow stop valve
- Configuration:
- Aspirator: 2 metal
- Circulation pump: Maximum flow rate 27/31 L/min, maximum head 9.5/13 m (50/60 Hz)
- Refrigerator/Refrigerant: Air-cooled output: 650 W/R 407 C
- Cooling Coil: SUS 316 L
- Standard:
- Aspirator Tank, Capacity, Material: Inner diameter 200 x 200 H (mm), approx. 6 L, SUS 304
- Cooling Water Tank/Capacity/Material: Inner diameter 280 x 271 H (mm)/Approx. 10 L/SUS 304
- Suction diameter: outside diameter 10 mm (2 locations)
- Supply and drainage nozzles: outer diameter 15 mm
- External circulation nozzle: One-touch connector inner diameter 10 mm, one-touch hose nozzle outer diameter 10 mm
- Operating ambient temperature range: 5 ~ 35 degrees C
- External dimensions (mm): 354 (362) W x 384 D x 1102 H
- Mass: About 50 kg
- Power input: 13.8 A, 1.38 kVA
- Power supply voltage: 100 VAC 50/60 Hz
- *Performance is measured at rated supply voltage, room temperature of 20 degrees Celsius and no load.
- *Set the temperature adjustment range above 5 degrees Celsius.
- *Cooling capacity is +/- 10% of display capacity.
- *It is not explosion-proof. Pay close attention to the surrounding environment when inhaling solvents that may ca*** fire or explosion.
- *Dimensions in parentheses include projections.
- Code: 276640
