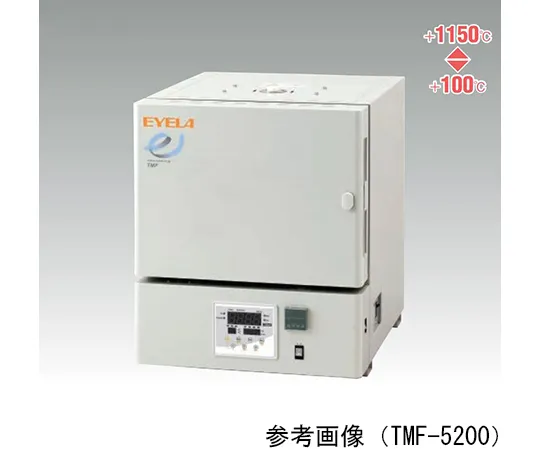

Spec

• Performance:
• Temperature adjustment range/normal temperature: 100 ~ 1150 degrees C/1100 degrees C
• Temperature control accuracy: +/- 1.5 degrees C (at 1150 degrees C)
• Temperature distribution accuracy: +/- 3 degrees C (at 1000 degrees C)
• Time to reach temperature: about 70 minutes (up to 1150 degrees Celsius)
• Features:
• Temperature control method: P.I.D control SSR output
• Temperature setting and display: Sheet key input and digital display
• Timer function: Auto start, Auto stop
• Program run: Up to 100 steps (1 minute to 99 hours and 59 minutes)
• Safety features: Self-diagnostic function (Overheating, broken sensor, broken heater, SSR failure, CPU failure, open door, data error, AD converter failure), temperature f***, key lock function, overcurrent/earth-leakage breaker, variable indep***ent overrise prevention
• External I/O: RS -232 C connector
• Configuration:
• Heater: iron-chromium 900 W
• Temperature sensor: R thermocouple
• Standard:
• Interior Dimensions (Effective Dimensions) (mm)/Capacity: 100 W x 180 D x 110 (100) H/About 2 L
• Furnace: Ceramic fiber
• Vent: 16 mm top center
• Operating ambient temperature range: 5 ~ 35 degrees C
• External dimensions (mm): 430 W x 495 D x 600 H
• Mass: About 32 kg
• Power input: 9 A, 900 VA
• Power supply voltage: 100 VAC 50/60 Hz
• *Performance is measured at room temperature of 20 degrees Celsius, rated power supply voltage, 50 Hz, no load and with the exhaust port closed.
• *Dedicated communication software is available. Please inquire.
• Accessories: 1 hearth plate, 1 exhaust palate, 2 fasteners (4 mounting screws)
• Code: 273760
