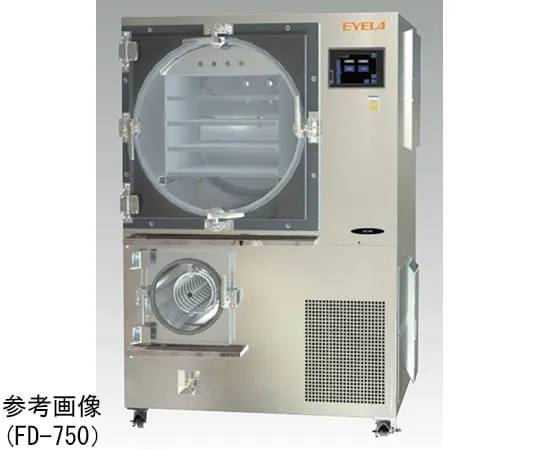

65-0571-74 Large shelf freeze-dryer - 40 ~ 70 deg C FD-750
Product Description
Product Model: 65-0571-74Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 65-0571-74
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- For scaling up from lab scale. Dehumidification capacity 20 L
- Large shelf type for food, medicine and cell tissue
- Large volume processing at one time for research and testing ~ Semi-plant and pilot plant preliminary experiments.
- Since the drying shelf can be cooled and heated, the sample container can be pre-frozen and freeze-dried simply by setting it on the shelf.
- The transparent acrylic door is ***d so that you can check the condition of the sample during operation.
- Automatic program operation is possible. Vacuum control and eutectic point measurement are available for a variety of applications.
- The upper limit of the drying shelf temperature control range is 70°C. During secondary drying in the food field, the Hygiene Test for Loss on Drying can be performed.
- Ice adhering to the cold trap melts quickly using the hot gas bypass method, thereby reducing the time required for the next operation.
Spec
- Dry shelf heating system: Cooling direct expansion heater heating system
- Performance:
- Trap cooling temperature: -45 degrees C or lower
- Dehumidification capacity: 20 L/dose
- Drying shelf temperature adjustment range: - 40 ~ 70 deg.
- Reached vacuum: 6.67 Pa or less
- Drying temperature setting and display: Color LCD touch panel
- Features:
- Temperature program: 10 patterns, 12 steps (pre-freezing - vacuum pump start - drying process, all process control)
- External input/output: vacuum degree, shelf temperature, trap temperature: 1 point each, sample temperature: 3 points (6 points in total), data output to USB memory
- Language display: Japanese, English (toggle display)
- Safety features: Vacuum degree monitoring, trap temperature monitoring, leakage and overcurrent breaker (For 100 V, 200 V)
- Configuration:
- Refrigerator/Refrigerant: Refrigerator for shelf cooling Air-cooled 1.5 kW, Refrigerator for trap cooling Air-cooled 1.5 kW/R 404 A
- Heater: Silicon rubber heater 1.4 kW
- Vacuum pump: Oil rotary 1.5 kW (Gas ballast, oil mist trap, with oil backflow valve)
- Vacuum pump displacement: 600/720 L/min (50/60 Hz)
- Vacuum gauge: Pirani vacuum gauge digital display (Pa)
- Standard:
- Dry Shelf Dimensions/Shelf Pitch: 480 W x 550 D x 18 Hmm/90 mm
- Dry Shelf Material/Finishing/Number of Racks: Top Plate Aluminum/Anodized/Effective 4 Racks + Temperature Compensation Shelf 1 Rack (Top Rack)
- Inside chamber dimensions and materials: phi 700 x 650 D, SUS 304
- Chamber door: Clear acrylic 40 mm left opening
- Trap part structure/cooling system: Cylinder-chamber horizontal type/Refrigerant gas direct expansion type
- Cooling coil part dimensions and material: phi 300 x 1100 L, SUS 304
- Trap part surface finish: buffed (# 400)
- Dry Shelf Interior Finish: Buff Polished (# 400)
- Operating ambient temperature range: 5 ~ 35 degrees C
- External dimensions (mm): 1200 W x 1600 D x 1800 H
- Mass: About 950 kg
- Power input/voltage: 18 A, 6.2 kVA/AC 200 V 3-phase 50/60 Hz
- *Performance is measured at room temperature of 20 degrees Celsius, rated supply voltage, 50 Hz and no load.
- Power plug not included.
- Code: 276970
