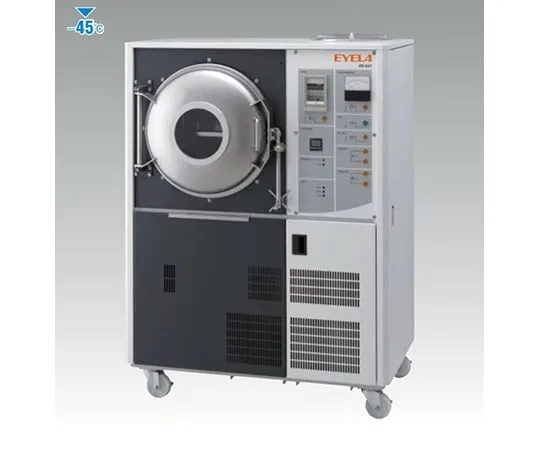

65-0571-70 Shelf freeze-dryer - 10 ~ 40 deg C FD-551R
Product Description
Product Model: 65-0571-70Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 65-0571-70
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- Trap Dehumidification Capacity 10 L, Shelf Drying System
- Large Shelf System for Food, Pharmaceuticals, and Cellular Tissues
- Mass Processing (Max. 10 L) at One Time for Preliminary Experiments in Semi-Plants and Pilot Plants.
- Since the drying shelf can be both cooled and heated, the sample container can be pre-frozen and freeze-dried simply by setting it on the shelf.
- Both cooling and heating of the shelf are heat medium circulation type. Compared to heater heating and cooling piping systems, uniform temperature distribution can be obtained.
- There is no heater part on the shelf, so you don't have to worry about a ground fault even if you wash the shelf with water.
- Pre-freezing and freeze-drying can be performed in the drying chamber, making it less sensitive to room temperature and enabling better freeze-drying.
- It has a safety device against abnormal shelf temperature rise.
Spec
- Shelf cooling (heating) system: Refrigerant circulation system
- Performance:
- Trap cooling temperature: -45 degrees C
- Dehumidification: 10 L/dose
- Pre-freezing tank temperature: -30 degrees C
- Reached vacuum: 6.67 Pa
- Drying shelf temperature adjustment range: - 10 ~ 40 deg.
- Features:
- Drying shelf temperature setting/display: Liquid expansion thermostat/digital display (minimum display: 1 degree Celsius)
- Safety functions: Leakage/overcurrent breaker, thermal relay for refrigerator/vacuum pump/circulation pump, shelf temperature overrise prevention, refrigerator high pressure switch, vacuum pump protection device
- Configuration:
- Refrigerator/Refrigerant: Air-cooled output: 1.1 kW + 0.3 kW R 404 A
- Vacuum pump: 250/300 L/min (50/60 Hz) 1 Pa
- Standard:
- Drying Shelf (mm) (Heating/Cooling Area): 360 W x 450 D x 20 H x 3 Stairs Fixed (0.48 m 2)
- Trap dimensions (mm): Inner diameter 260 x 553 H
- Chamber dimensions (mm)/Material: Inner diameter 500 x 500 D/120 L/SUS 304
- Vacuum gauge: Pirani vacuum gauge 0.4 ~ 533 Pa
- Recorder: Vacuum: 1 point, Shelf temperature: 1 point, Sample temperature: 4 points (Chart width: 100 mm)
- Operating ambient temperature range: 5 ~ 35 degrees C
- External Dimensions (mm)/Mass: 1107 W x 797 D x 1504 H/About 425 kg
- Power input/voltage: 15/12 A, 5.1/4.1 kVA/200 VAC 3-phase 50/60 Hz
- *Performance is measured at room temperature of 20 degrees Celsius, rated supply voltage, 50 Hz and no load.
- Power plug not included.
- Code: 270330
