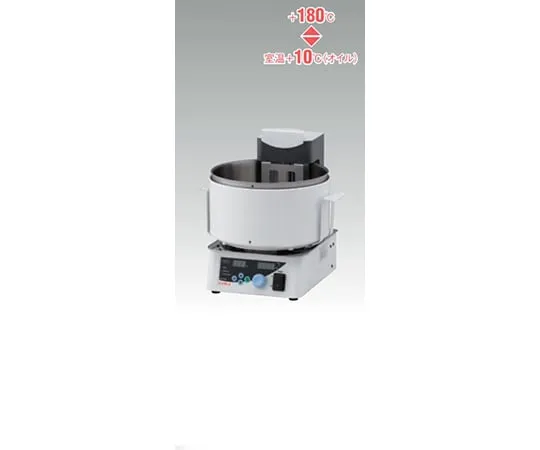

65-0570-75 Constant temperature oil tank/low temperature water tank pair stirrer with magnetic stirrer, low temp pair stirrer PS-1100
Product Description
Product Model: 65-0570-75Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 65-0570-75
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- 4 types that cover a wide temperature range for studying reaction conditions in an environment from minus 80 degrees Celsius to high temperatures: Stir inside the tank and the reaction vessel to maintain the sample temperature precisely and evenly.
- The PS-1100 heater can be ***d for both water and oil, and can be ***d for water bath synthesis, oil synthesis at constant temperature, and polymerization reactions.
- PS-1100 is a tabletop type, so it can be installed in the draft chamber.
Spec
- Performance:
- Temperature adjustment range: Water: 30 (room temperature + 5 degrees C) to 80 degrees C, Oil: 30 (room temperature + 10 degrees C) to 180 degrees C
- Temperature control accuracy: within +/- 0.5 degrees C (Tank center, water)
- Speed range: 100 ~ 800 rpm
- Features:
- Temperature control: Heater: P.I.D control
- Sensor: Platinum thermometer resistor Pt 100 ohm
- Temperature setting and display: Sheet key input digital setting and display
- Safety features: Vacant Cooking Prevention Unit (float switch), Variable Indep***ent Overrise Prevention Unit (set at 60 ~ 200 degrees Celsius), F***, Insulated Protective Bath Cover, Self-Diagnosis Function (Sensor disconnect/short alarm, outside measurable temperature range alarm, upper temperature alarm, power outage detection, rotation error, watchdog)
- Configuration:
- Heater: 700 W (combined water and oil)
- Stirring motor: DC brushless motor output 25 W
- Standard:
- Tank Inside Dimensions (mm)/Capacity: Internal diameter 250 x 130 H/6 L
- Water tank material: SUS 304
- Maximum Capacity/Maximum Diameter of Container Used: 2 L/165 mm
- Operating ambient temperature range: 5 ~ 35 degrees C
- External dimensions (mm): 320 W x 350 D x 330 H
- Mass: About 10 kg
- Power input/voltage: 7.5 A, 750 VA/AC 100 V 50/60 Hz
- *Performance is measured at room temperature of 20 degrees Celsius, rated supply voltage, 50 Hz and no load.
- *Dimensions in parentheses include projections.
- Accessories: 1 Teflon ® Stirrer (40 mm), 1 Shelf Board
- Code: 277390
