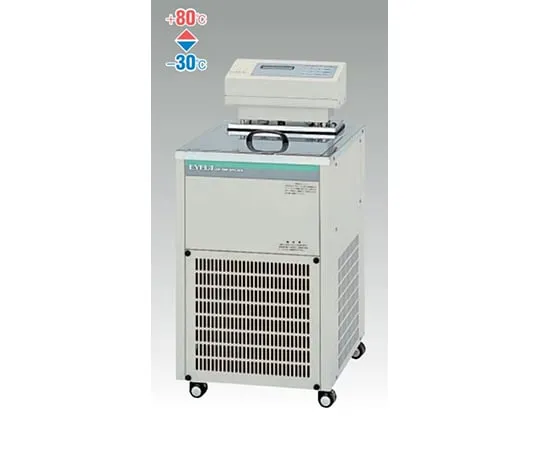

Spec

• Performance:
• Temperature adjustment range and accuracy: - 30 ~ 80 degrees C, +/- 0.03 degrees C
• Cooling capacity (at liquid temperature) - 480 W at 20 degrees C (412 kcal/h), 350 W at -10 degrees C (301 kcal/h)
• Temperature drop gradient: 0.3 degrees C/min or less
• External Circulation Capacity: Maximum Discharge 6.7 L/min (50 Hz, water), Maximum Pump Head 2.9 m (50 Hz, water)
• Features:
• Temperature control (sensor): P.I.D control, SSR output (platinum temperature resistor JPt 100 ohm)
• Temperature setting and display: Numeric keypad input method, minimum setting digit 0.01 degrees Celsius, digital display
• Program functions: 1. Constant value operation (normal mode) 2. Auto start 3. Auto stop (1 minute to 99 hours and 59 minutes) 4. User programs 7 patterns (1 pattern: Max. 10 segments, 1 minute to 99 hours 59 minutes/1 segment)
• Safety functions: Self-diagnostic function (Low water level, sensor error, SSR failure, overheating, heater break, cooling failure, power failure alarm, program gradient failure), leakage/overcurrent breaker, refrigerator overload relay
• External input/output: RS -232 C connection terminal, external temperature sensor terminal
• Configuration:
• Heater: 1.2 kW (SUS 316 L)
• Refrigerator/Refrigerant: Air-cooled output: 400 W/R 407 C
• Cooling Coil: SUS 304
• Tank Stirring: Jet Stirring
• Standard:
• Out-of-tank circulation nozzle: Sealed system directed circulation, 10.5 mm outside diameter of discharge port hose mouth (Rc 1/4 with stop valve), 10.5 mm outside diameter of return port hose mouth (Rc 1/4)
• Water tank material: SUS 304
• Tank Inside Dimensions (mm)/Tank Capacity: 320 W x 405 D x 180 H/23 L
• Effective dimensions in tank (mm): 280 W x 240 D x 160 H
• Operating ambient temperature range: 5 ~ 30 degrees C
• External dimensions (mm): 393 W x 511 D x 793 H
• Mass: About 48 kg
• Power input/voltage: 20 A, 2 kVA/100 VAC 50/60 Hz
• *Performance is measured at room temperature of 20 degrees Celsius, liquid temperature of 40 degrees Celsius, rated power supply voltage of 50 Hz, working liquid water and no load.
• *Use a low-temperature heating medium when the liquid temperature is set below 10 degrees Celsius.
• *Dimensions in parentheses include projections.
• Power plug not included.
• Code: 112460
