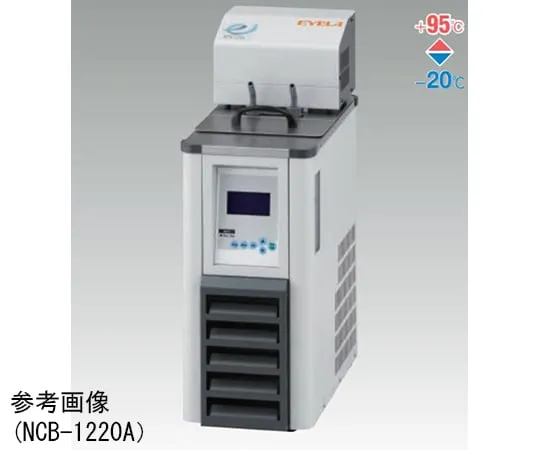

Spec

• Performance:
• Temperature adjustment range: - 20 ~ 95 degrees C
• Temperature control accuracy: below +/- 0.1 degrees C
• Cooling capacity (at 10 degrees Celsius): 180 W (154 kcal/h)
• External Circulation Capacity (50/60 Hz) Maximum Flow: 4.5/5.0 L/min, Maximum Pump Head: 1.2/1.7 m
• Features:
• Temperature control: P.I.D control, contactless zero-cross output
• Temperature setting/display: Sheet key input/digital display, minimum digit 0.1 degrees C
• Safety functions: Upper and lower temperature anomaly detection, water level drop, overshoot, control anomaly, sensor anomaly, high pressure switch, refrigerator overload relay, variable indep***ent overrise detector, leakage and overcurrent breaker
• Timer program function: Auto start, Auto stop step mode
• Included features: Auto-tuning, temperature display correction, power outage return settings
• External input/output: PC communication (RS -232 C synchronous serial communication), external temperature sensor terminal, recorder output terminal, alarm output terminal (Voltage Free Contact (a Contact) Output AC 250 V/Max. 3 A)
• Configuration:
• Heater: 500 W (SUS 316 L)
• Refrigerator/Refrigerant: Air-cooled output: 300 W/R 452 A
• Tank Stirring: Jet Stirring
• Cooling Coil: SUS 316 L
• Tank Lid: SUS 304
• Temperature sensor: Platinum temperature resistor Pt 100 ohm
• Standard:
• Outboard Circulation Nozzle: Both Outlet and Return Outlets 11 mm Outside Diameter Hose Outlet
• Recorder output range: 1 ~ 4 VDC (- 40 ~ 110 deg. C)
• Water tank material: SUS 304
• Tank Inside Dimensions (mm), Capacity: 140 W x 260 D x 150 H, Approx. 4 L
• Effective dimensions in tank (mm): 110 W x 80 D x 130 H
• Operating ambient temperature range: 5 ~ 35 degrees C
• External dimensions (mm): 210 (225) W x 433 (530) D x 600 H
• Mass: About 32 kg
• Power input/voltage: 12 A 1.2 kVA/100 VAC 50/60 Hz
• *Performance is measured at room temperature of 20 degrees Celsius, rated supply voltage, 50 Hz and no load.
• *Use a low-temperature heating medium when the liquid temperature is set below 10 degrees Celsius.
• *It can not be ***d in conjunction with a load (recirculating heat source) at liquid temperatures above 40 degrees Celsius.
• *Dep***ing on the conditions, the refrigerator may be turned ON/OFF around the set temperature of 40 ~ 65 degrees Celsius, which may reduce the temperature adjustment accuracy.
• *The temperature adjustment range is - 10 ~ 95 degrees Celsius when the operating ambient temperature is 30 degrees Celsius or more.
• *Dimensions in parentheses include projections.
• Code: 279520
