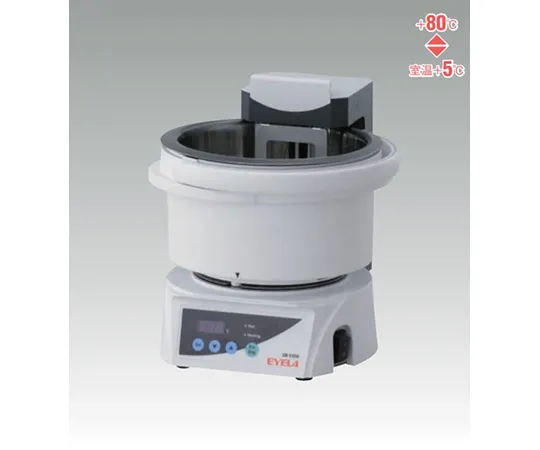

65-0570-55 Constant temperature water bath approx. 4.3 L SB-1350
Product Description
Product Model: 65-0570-55Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 65-0570-55
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- Detachable water tank section. Easy Water Replacement and Cleaning • Improved Safety • A water bath that can be ***d in a wide range of applications. It is equipped with the following safety functions as standard: an upper temperature alarm to detect a sudden temperature rise abnormality, a float switch to detect a drop in the water level, a dedicated bus detector to detect the attachment and detachment of the water tank, and a fixed temperature overheat preventer.
- The water tank section (bus cover with bath and handle) can be removed for easy water replacement and cleaning.
- It has a communication function. It can be linked by combining with vacuum controller NVC-3000 type and solvent recovery unit DPE-1150 and 2150 type. Run/Stop from the Vacuum Controller to the SB-1350.
Spec
- Performance:
- Temperature adjustment range: room temperature + 5 ~ 80 degrees C
- Temperature control accuracy: +/- 1 degrees C (when stirring)
- Features:
- Temperature control: P.I.D control
- Safety features: Uncooked water heater (float switch), fixed temperature overheat detector (temperature fixed, liquid expansion type manual return type), dedicated bus detector, f***, insulated protective bus cover, self-diagnostic feature (Sensor disconnect/short alarm, outside measurable temperature range alarm, upper temperature alarm, power outage detection, watchdog)
- Configuration:
- Heating method: Heater heating
- Heater: 950 W
- Temperature sensor: Platinum temperature resistor Pt 100 ohm
- Standard:
- Water Tank Material/Capacity: SUS 304/about 4.3 L
- Effective dimensions in tank (mm): 220 W x 179 D x 120 H
- Operating ambient temperature range: 5 ~ 35 degrees C
- External dimensions (mm)/Mass: 292 W x 366 D x 311 H/7 kg
- Power input/voltage: 9.5 A, 0.95 kVA/100 VAC 50/60 Hz
- *Performance is measured at room temperature of 20 degrees Celsius, rated power supply voltage, 50 Hz, no load and stirring.
- Code: 274580
