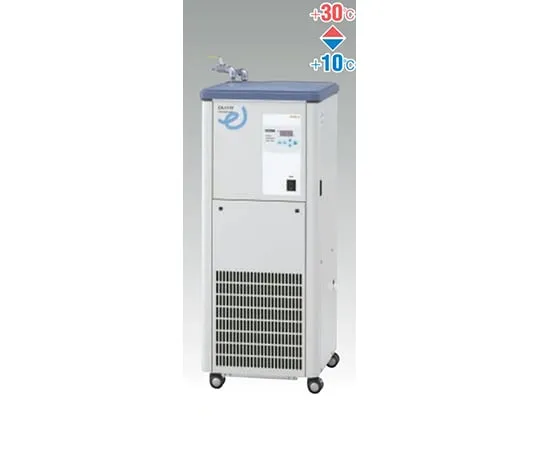

65-0569-37 Cooling Water Circulation Device Cool Ace for water supply and pure water CA-1115B
Product Description
Product Model: 65-0569-37Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 65-0569-37
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- 6 types that meet the needs of industrial and analytical equipment • 6 types that are compatible with equipment • Can be ***d not only to cool research equipment, but also to cool heating parts such as machine tools, semiconductor manufacturing equipment, and analytical and measurement equipment.
- Suitable for a wide range of applications with a temperature setting range of -20~30°C (C, D, E type) and 10~30°C (B, F, F2 type).
- The CA-1115B type is equipped with a SUS elbow (Rc3/8), and the CA-1115 F/F2 type is equipped with a socket (Rc3/8), so it can also be connected to metal piping.
- CA-1115 Type B: Can circulate pure water (electrical conductivity of 0.1 mS/m or more)
Spec
- Cooling/Circulation System: Air Cooled/Sealed System Directional Circulation
- Corresponding circulating water: clean water, pure water (electrical conductivity: 0.1 mS/m (1 microS/cm or more))
- Performance:
- Temperature setting range: 10 ~ 30 degrees Celsius (without heater)
- Temperature control accuracy: +/- 2 degrees C
- Cooling capacity (at liquid temperature) - 1400 W at 20 degrees C (1204 kcal/h), 1200 W at 10 degrees C (1032 kcal/h)
- External Circulation Capacity (50/60 Hz) Maximum Flow: 16/18 L/min, Maximum Head: 9.5/13 m
- Features:
- Temperature control: Refrigerator ON-OFF control
- Temperature setting/display: Sheet key input/digital display, minimum digit 1 degree C
- Safety features: Leakage/overcurrent breaker, refrigerator high-pressure switch, overload relay holding circuit, refrigerator protection timer, temperature controller self-diagnostic function, circulation pump thermal protector, low flow rate, low water level, f*** for service outlet
- Accessory function: With flow stop valve, temperature display correction function
- Configuration:
- Refrigerator/Refrigerant: Air-cooled output: 650 W/R 407 C
- Cooling Coil: SUS 304
- Standard:
- External circulation nozzle, both discharge and return ports: 10.5 mm outer diameter hose mouth (Rc 3/8)
- Water Tank Materials, Dimensions (mm), Capacity: SUS 304, Inner Diameter 280 x 270 H, 16.5 L (Liquid Amount 14 L)
- Service outlet: 100 VAC, Max. 4 A 1 unit
- Operating ambient temperature range: 5 ~ 35 degrees C
- External dimensions (mm): 340 (354) W x 384 D x 851 (910) H
- Mass: About 43 kg
- Power input: 11 A, 1.1 kVA
- Power supply voltage: 100 VAC 50/60 Hz
- *Performance is measured at room temperature of 20 degrees Celsius, rated supply voltage, 50 Hz and no load.
- *Cooling capacity is +/- 10% of display capacity.
- *The external circulation capacity is +/- 10% of the display capacity.
- *If the liquid temperature is set below 10 degrees Celsius, *** a low-temperature heating medium.
- *Dimensions in parentheses include projections.
- Code: 249150
