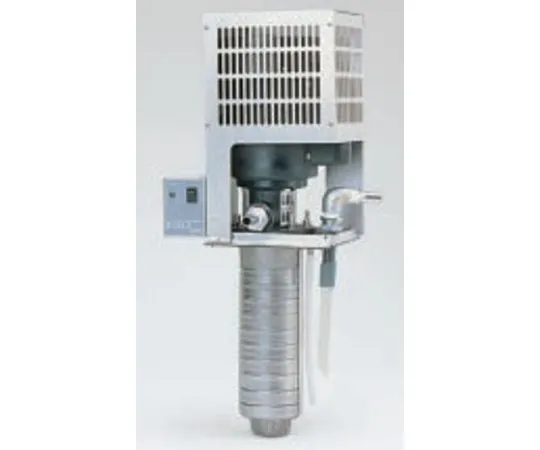

65-0569-35 (For circulation equipment) High pressure pump Rc 3/8 HPP-1100
Product Description
Product Model: 65-0569-35Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 65-0569-35
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- The discharge pressure (10 L/min, 196 kPa (2 kg/cm2)) is equivalent to that of a water supply. Use this product when the capacity of a standard pump is insufficient, such as in a channel with high pressure loss.
Spec
- External Circulation Capacity (50/60 Hz):
- Maximum flow rate: 24/26 L/min
- Maximum head: 24/34 m (Discharge pressure: 0.23/0.33 MPa)
- Water flow rate: 10/20 L/min at 0.2 MPa (2 kgf/cm)
- Safety features: Motor cover, circuit protector
- Motor: 250 W output
- Standard:
- External circulation nozzle: Both discharge and return ports (Rc 3/8) Outer diameters 10.5, 12, 16 mm Hose port
- Liquid temperature range: - 10 ~ 80 degrees C
- Pump head material: SUS 304
- Operating ambient temperature range: 5 ~ 35 degrees C
- External dimensions (mm):
- HPP Type Body: 252 W x 220 (241) D x 525 H
- With CA -1116 A: 352 W x 373 D x 1170 H
- Mass: About 11 kg
- Power input: 3.5/3.7 A, 0.35/0.37 kVA
- Power supply voltage: 100 VAC 50/60 Hz
- *Performance is measured at room temperature of 20 degrees Celsius, clean water, rated power supply voltage, liquid temperature of 20 degrees Celsius, 50 Hz and no load.
- *When a high-pressure pump is ***d, the cooling capacity of the circulator is reduced by about 230 W (200 kcal/h) due to the heat generated by the motor.
- *Dimensions in parentheses include projections.
- Code: 158750
