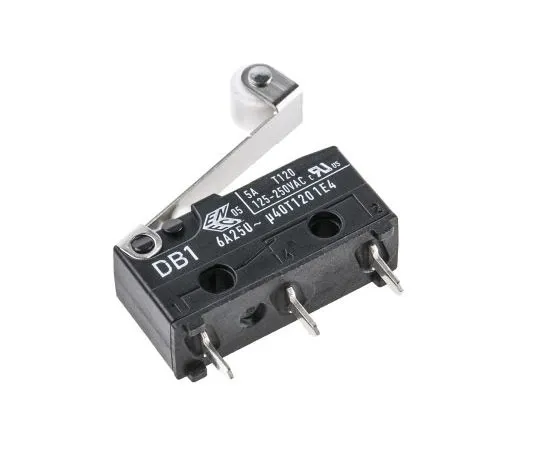

63-4699-55 SPDT-NO/NC Roller Lever Microswitch, 6 A @ 250 V ac DB1C-C1RC
Product Description
Product Model: 63-4699-55Product Brand: ZF Features ENE […]
Contact Us
Product Details
Product Model: 63-4699-55
Product Brand: ZF
Features
- ENEC, UL. Cherry DB Series Microswitches. Cherry DB series microswitches are high precision switches that offer a high repeat accuracy. The DB series features a long mechanical life and can operate at high temperatures. Rated for currents up to 10 amp at 250VAC Range of auxiliary actuators available Mechanical life: up to 15 x 106 operations Wide variety of terminal types available V4 case size
Spec
- Quantity：1piece
- Actuator Type : Roller Lever
- Terminal Type : Through Hole
- Contact Current Rating : 6 A @ 250 V ac
- Contact Configuration : SPDT-NO/NC
- Operating Force : 0.54 N
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +120°C
- Contact Material : Gold; Silver Alloy
- Mechanical Life : 15000000Operations
- Operating Temperature Range : -40 → +120°C
- CODE No.:159-4663
