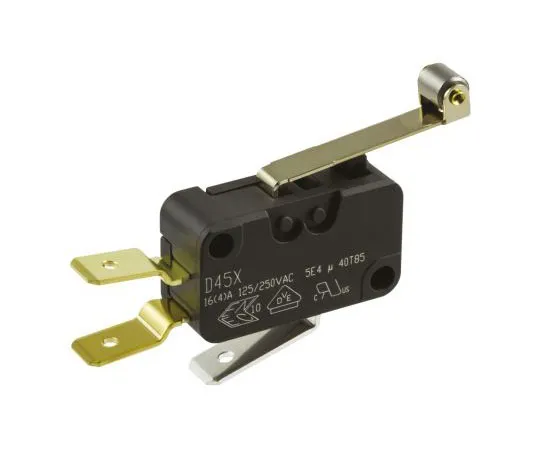

63-4699-50 SPDT-NO/NC Roller Lever Microswitch, 16 A @ 250 V ac D459-V3RD
Product Description
Product Model: 63-4699-50Product Brand: ZF Features 16A […]
Contact Us
Product Details
Product Model: 63-4699-50
Product Brand: ZF
Features
- 16A: UL, CSA, VDE, SEV, SEMKO, KEMA, DEMKO, NEMKO, ÖVE, BEAB, SETI 16A Screw Terminal: UL, CSA, VDE 16A High Temperature: UL, CSA, VDE, SEV, SEMKO, KEMA, DEMKO, NEMKO, ÖVE, BEAB, SETI 21A: UL, CSA, VDE, SEV, SEMKO, KEMA, DEMKO, NEMKO, ÖVE, BEAB, SETI. Cherry D4 Series 0.1A, 16A ; 21A. Cherry D4 series miniature microswitches are a highly reliable switch that offers a high level of repeat accuracy. The D4 series has high contact stability thanks to application-specific contact materials for switching currents of 100 mA to 21 A at 250 V ac. Polyester casing Snap action V3 case size EN 61058 and UL1054-approved Cadmium-free contact material Mechanical life ≥ 2x10 ;sup>7 ;/sup> (3 x 10 ;sup>6 ;/sup> for high temperature versions)
Spec
- Quantity:1bag(5pieces)
- Actuator Type : Roller Lever
- Terminal Type : Tab
- Contact Current Rating : 16 A @ 250 V ac
- Contact Configuration : SPDT-NO/NC
- Operating Force : 0.49 N
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +85°C
- Contact Material : Silver Alloy
- Operating Temperature Range : -40 → +85°C
- CODE No.:159-4449
