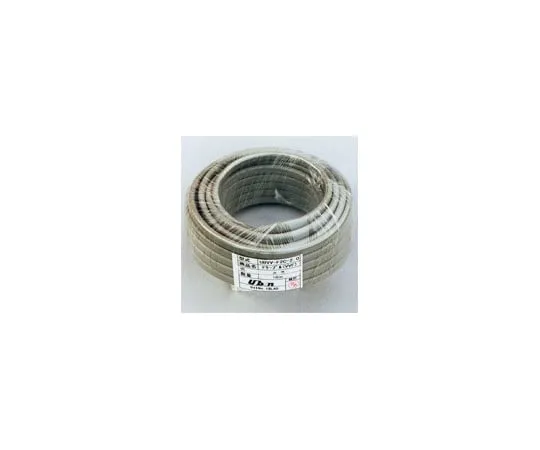

62-0522-46 F Cable (UBVV-F) (3 Cores Outer Diameter 6.2 x 13mm) Length 10m UBVV-F3C-1.610M
Product Description
Product Model: 62-0522-46Product Brand: FA Ubon Feature […]
Contact Us
Product Details
Product Model: 62-0522-46
Product Brand: FA Ubon
Features
- "600 V Vinyl Insulated Vinyl Sea Cable Flat" cable.
- It is a simple structure with vinyl sheath covering the outside of vinyl coating.
- VVF cables are very commonly ***d in low-voltage indoor wiring, and they are widely ***d as power supply cables for lighting and outlet circuits up to about 15 A and for air conditioning work.
Spec
- Format: UBVV-F3C-1.6
- Number of element wire/element wire diameter: 1 pieces/1.6mm
- Outer diameter: 6.2 x 13mm
- Conductor outer diameter: 1.6mm
- Insulator thickness: 0.8mm
- Length: 10m
- Allowable current: 16A
- Number of cores: 3
- Color: Gray
