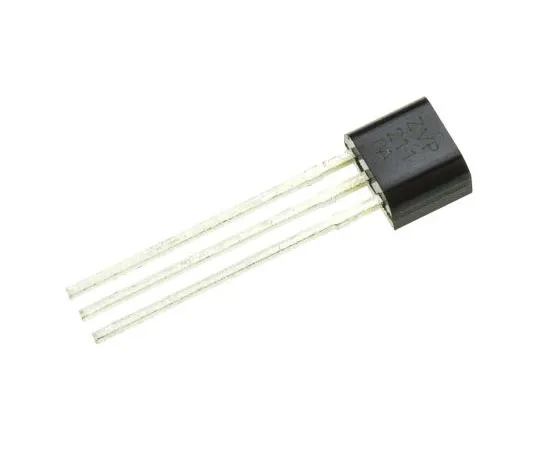

63-4698-86 ZVP2110A P-Channel MOSFET, 230 mA, 100 V, 3-Pin E-Line Diodes Inc ZVP2110A
Product Description
Product Model: 63-4698-86Product Brand: DiodesZetex Fea […]
Contact Us
Product Details
Product Model: 63-4698-86
Product Brand: DiodesZetex
Features
- P-Channel MOSFET, 100V to 450V, Diodes Inc
Spec
- Quantity：1bag(5pieces)
- Channel Type : P
- Maximum Continuous Drain Current : 230 mA
- Maximum Drain Source Voltage : 100 V
- Maximum Drain Source Resistance : 8 Ω
- Maximum Gate Threshold Voltage : 3.5V
- Maximum Gate Source Voltage : -20 V, +20 V
- Package Type : E-Line
- Mounting Type : Through Hole
- Pin Count : 3
- Channel Mode : Enhancement
- Category : Small Signal
- Maximum Power Dissipation : 700 mW
- Number of Elements per Chip : 1
- CODE No.:157-4580
