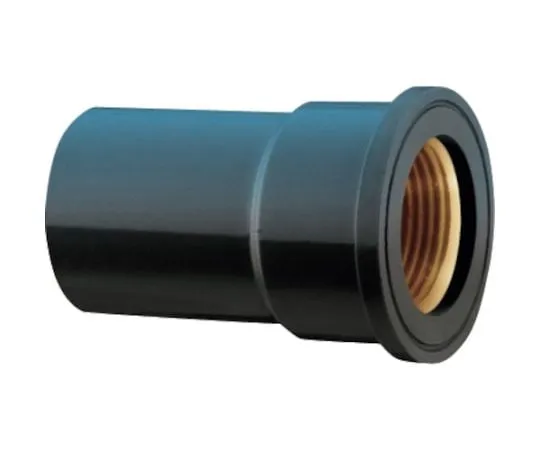

67-2352-84 HI-TS Fitting Insert Hydrant Socket 13 Rp1/2 IIWS13M
Product Description
Product Model: 67-2352-84Product Brand: SEKISUI Feature […]
Contact Us
Product Details
Product Model: 67-2352-84
Product Brand: SEKISUI
Features
- Hard vinyl chloride joint with excellent corrosion resistance.
- We have developed and adopted HI Gold resin, which has more than twice the impact resistance and more than four times the adhesion strength of conventional resin.
- Dedicated to water supply pipes for condominiums, detached ho***s, shops and facilities.
- For impact resistant hard vinyl chloride joints (HI pipes).
Spec
- PVC Pipe Nominal Diameter: 13
- Dimension (mm) D: 24
- Dimension (mm) L: 47
- Maximum Working Pressure (MPa): 1.0
- Operating temperature range (°C): 5~40
- Thread: Rp1/2
- Operating temperature range: 5~40°C
- Maximum Working Pressure: 1.0 MPa
- JIS K6743 Standard
- Material/Finish: Impact Resistant Hard Polyvinyl Chloride (HI-PVC)
- Country of origin: Japan
- Securities Code: 383-0445
