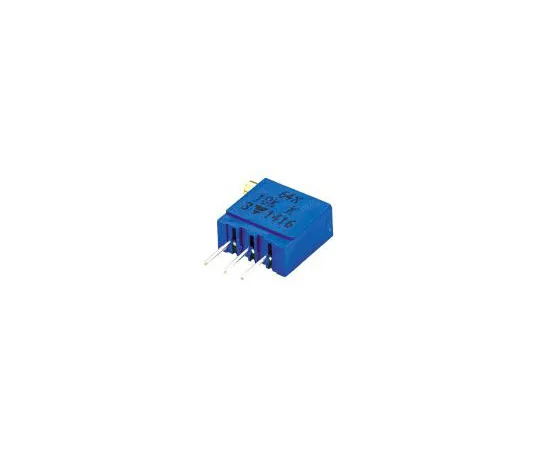

63-4697-25 Vishay 64X Series 19 (Electrical), 22 (Mechanical)-Turn Through Hole Trimmer Resistor with Pin Terminations, 10kΩ ±10% M64X103KB40
Product Description
Product Model: 63-4697-25Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-4697-25
Product Brand: Vishay
Features
- Side Adjust 64X Series. Slim body profile, higher packing density Sealed to withstand immersion board washing Flame retardant plastic housing Double chevron shaft seal Moulded body with built in stand-offs IC style pins for PCB assembly Precious metal wiper for set point stability
Spec
- Quantity：1piece
- Maximum Resistance : 10kΩ
- Number of Turns : 19 (Electrical), 22 (Mechanical)
- Mounting Type : Through Hole
- Power Rating : 1/2W
- Series : 64X
- Orientation : Side Adjust
- Termination Style : Pin
- Length : 11mm
- Depth : 5mm
- Height : 9.8mm
- Dimensions : 11 x 5 x 9.8mm
- Shaft Diameter : 2.2 mm
- Tolerance : ±10%
- Maximum Operating Temperature : +155°C
- CODE No.:154-2246
