Spec

• Circulation system: closed system countercirculation
• Performance:
• Temperature adjustment range and accuracy: room temperature + 15 ~ 90 degrees C, +/- 3 degrees C
• External circulation capacity (50/60 Hz): maximum flow rate 60 L/min, maximum head 6 m
• Features:
• Temperature setting and control: Volume setting and heater ON-OFF control
• Safety Functions: Safety Functions Leakage/Overcurrent Breaker, Overrise Prevention, Empty Fire Prevention
• Configuration:
• Heater: 4 x 2 kW
• Temperature sensor: liquid expansion type
• Standard:
• External circulation nozzle: Both discharge and return ports (Rc 3/4) 21 mm outer diameter hose port
• Water Tank Materials, Dimensions (mm), Capacity: SUS, 450 W x 300 D x 300 H x 40.5 L (Liquid Amount 30 L)
• Operating ambient temperature range: 5 ~ 35 degrees C
• External dimensions (mm), Mass: 603 (753) W x 404 (504) D x 762 (852) H, approx. 60 kg
• Power input: 30 A, 8.5 kVA
• Power supply voltage: 200 VAC, 3-phase 50/60 Hz
• *Performance is measured at room temperature of 20 degrees Celsius, rated supply voltage, 50 Hz and no load.

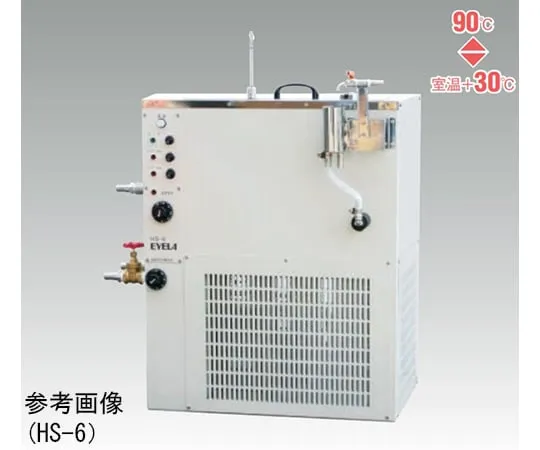

• *The HS -6, 8 and 12 models may not be able to adjust the temperature at room temperature + 30 degrees Celsius when the load at the circulation destination is small.
• *Dimensions in () include projections.
• Power plug not included.
• Code: 113900
