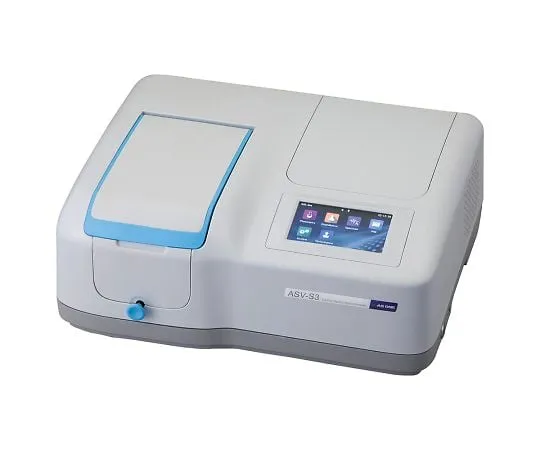

4-2874-01-22 Visible Spectrophotometer (wavelength scan type) with Pre-shipment Inspection Certificate ASV-S3
Product Description
Product Model: 4-2874-01-22Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 4-2874-01-22
Product Brand: AS ONE Corporation
Features
- 5 inch color touch panel type with excellent operability and visibility.
- Standard curves, wavelength scanning and quantitative measurement are also possible, and can be ***d for a wide range of applications.
- You can also save data easily with a USB flash drive.
- It comes with a quadruple cell holder that can set 4 cells at the same time.
- Upper model of visible type with excellent operability and full functions
Spec
- Size (mm): 460 x 360 x 185
- Weight (kg): 11
- Wavelength range: 320 ~ 1100 nm
- Spectral bandwidth: 4 nm
- Wavelength accuracy: +/- 1 nm
- Wavelength reproducibility: 0.5 nm
- Measurement system: Single beam (1200 lines/mm)
- Measuring range: Transmittance/0 ~ 200% T, Absorbance/-0.3 to + 3 A, Concentration/0 ~ 1999 C
- Accuracy of measurement: Transmittance/+/- 0.5% T
- Stray: 0.05% T (@ 360 nm)
- Scan speed: up to 4200 nm/min
- Stability: 0.002 A/h (@ 500 nm)
- Cell holder: 4-cell holder
- Light source: Tungsten lamp
- Power supply: 100 VAC 50/60 Hz
- Accessories: 4 glass square cells
- Inspection contents App***ix: Inspection inspection documents
- Confirmation of baseline, wavelength accuracy and transmittance of 50%
- App***ix: Inspection Certificate documents
- *Products with Inspection Certificate are Azwan's original service that includes inspection of control and electric engine personnel and issuance of inspection documents at the time of shipment.
