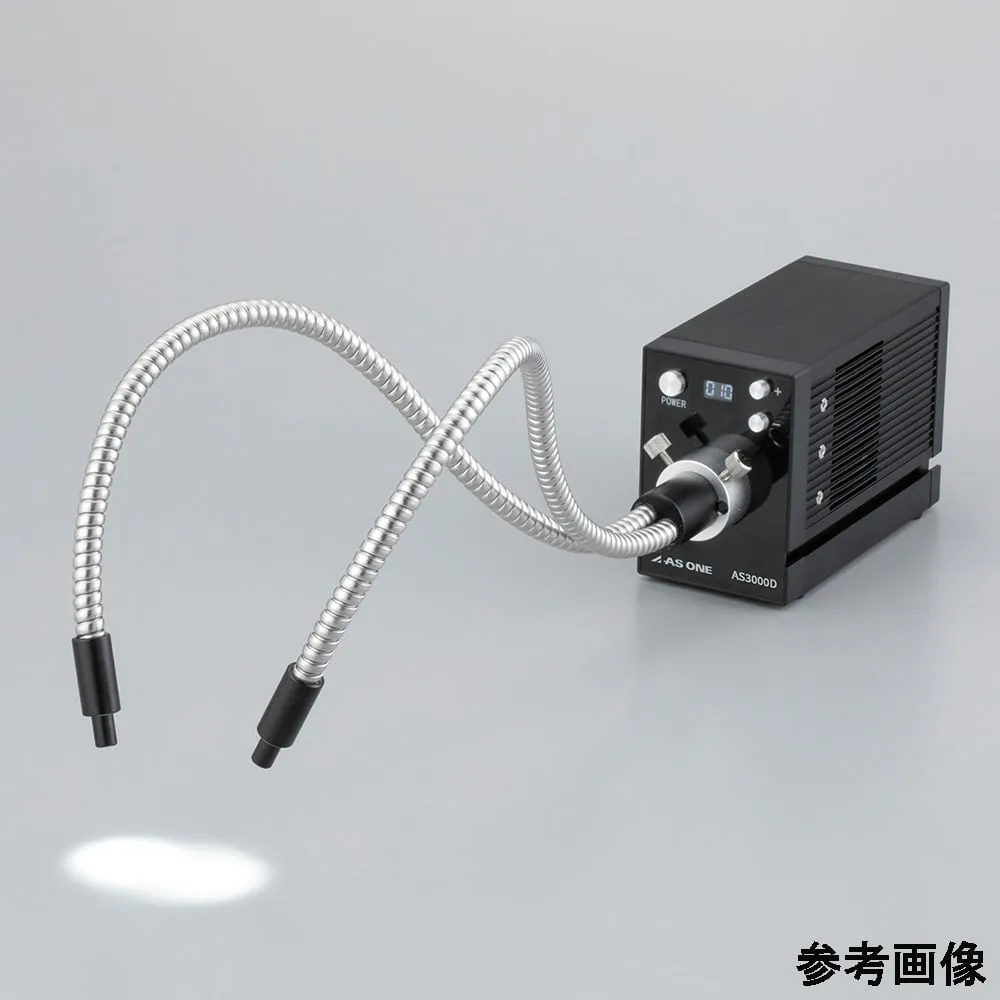

3-6702-31 LED light source part AS3000D
Product Description
Product Model: 3-6702-31Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-6702-31
Product Brand: AS ONE Corporation
Features
- You can choose between manual control and external control.
- It comes with an automatic saving function, so you don't need to set the brightness again.
- Compact size and does not take up much space.
Spec
- Specifications: Light source
- Size (mm): 70 x 175 x 102
- Average illuminance: 240,000 lx * 1
- Color temperature: 5600 K (reference value)
- LED Life: Approx. 30,000 Hours (Reference)
- Dimmer Range: 0~100%
- Control Method: Full Panel Manual, Analog Voltage, PWM Signal, RS232C
- Cooling System: Natural Radiation + Silent Fan
- Power: 100 VAC 50/60Hz (AC Adapter Included)
- Maximum power consumption: 15 W
- Size: 70 x 175 x 102 mm
- Weight: Approx. 1.8 kg
- *1 Using a light guide with a fiber bundle diameter of Φ6 mm and total length of 1000 mm, the value at 50 mm from the tip of the light guide
