Analyzer, Testing Equipment

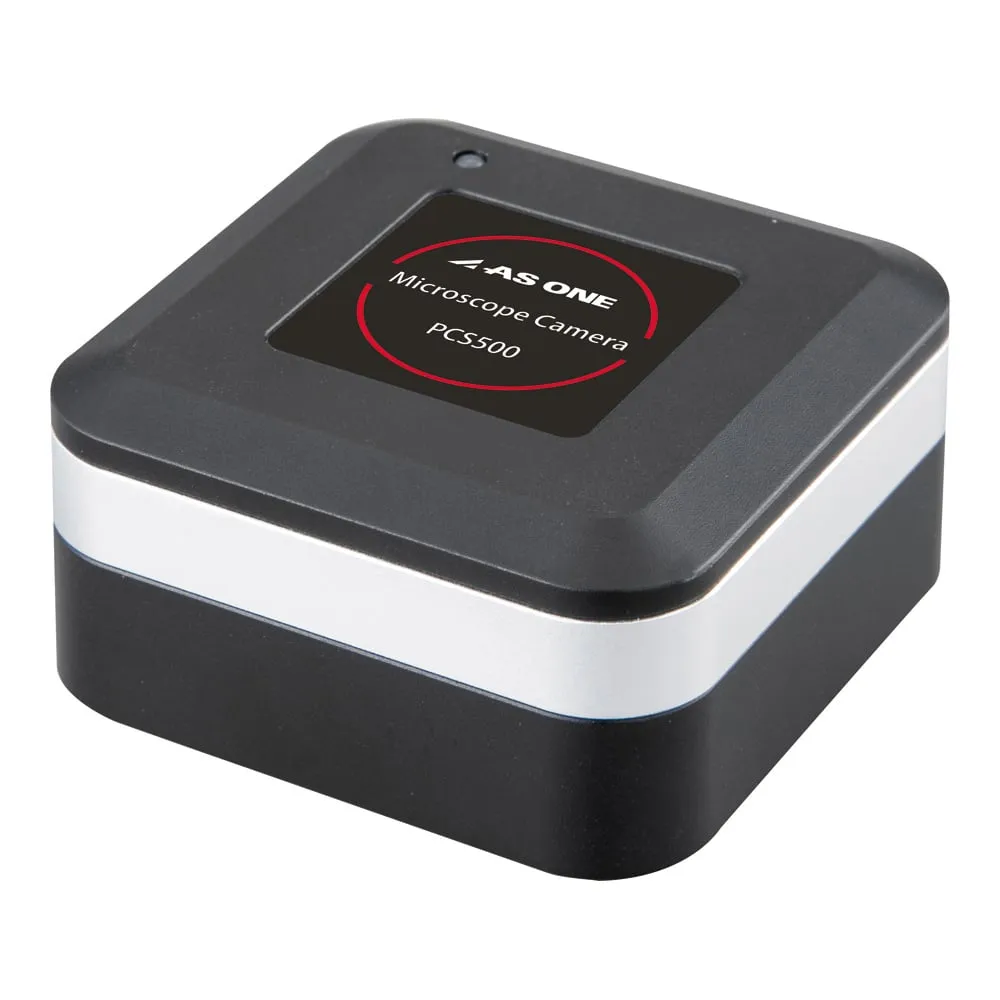

3-6691-32 Digital Camera For microscope PCS500
Product Description
Product Model: 3-6691-32Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-6691-32
Product Brand: AS ONE Corporation
Features
- Download the
- This digital microscope camera has excellent color reproduction.
- It can be easily attached to the top of the microscope.
- Compatible with Japanese software for excellent operation (Image processing, image measurement, image counting, image synthesis, data recording, and reporting functions).
- Plug and Play simplifies device installation.
Spec
- Number of pixels: 5 million
- Image sensor: 1/2. 8 "
- Mount: C Mount
- Frame rate: 2592 x 1944/2048 x 1536/1920 x 1080 @ 30 fps (dep***s on system requirements)
- Operating System: Windows ® 7/8/10
- Pixel size: 2 x 2 um
- Interface: USB 2.0
- Data formats: BMP, JPG, SFC, TIFF, AVI
- Imaging area: 5.18 mm x 3.89 mm
- Body size: 60 x 60 x 32 mm
- Weight: approximately 200 g
- Accessories: 12 mm eyepiece barrel adapter (phi 30/phi 38), CS ring, USB 2.0 cable (detachable), measurement calibration slide, CS ring
