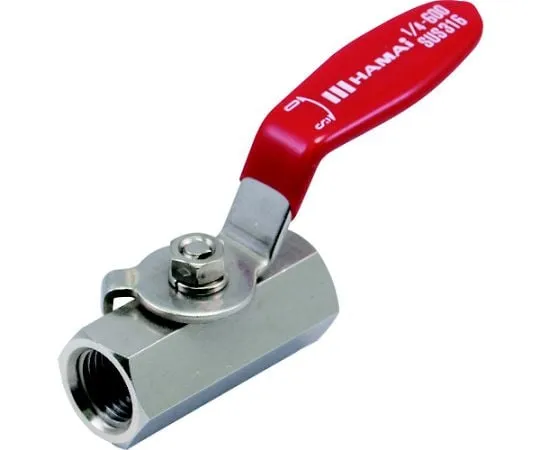

65-1978-69 Stainless Steel Ball Valve (Lever) Total Length 54.5 mm BSS-01-15RC
Product Description
Product Model: 65-1978-69Product Brand: HAMAI Features […]
Contact Us
Product Details
Product Model: 65-1978-69
Product Brand: HAMAI
Features
- This is a reduction bore type made of SUS316 with excellent corrosion resistance and heat resistance.
- For water, oil and gas.
Spec
- Nominal diameter A: 15
- Nominal diameter B: 1/2
- Total length (mm): 54.5
- Height (mm): 42
- Handle Length D (mm): 80
- Maximum allowable pressure (MPa): 3.92
- Operating temperature range (°C): -20~180 (non-freezing)
- Applicable fluids: water, oil, gas, etc.
- Nominal diameter (mm): 21.7
- Face to face (mm): 54.5
- Internal diameter (mm): 9
- Connection: Rc x Rc
- Reduce Bore Type
- Material/Finish: Stainless Steel (SUS316)
- Country of Origin: Japan
- Securities Code: 216-2755
