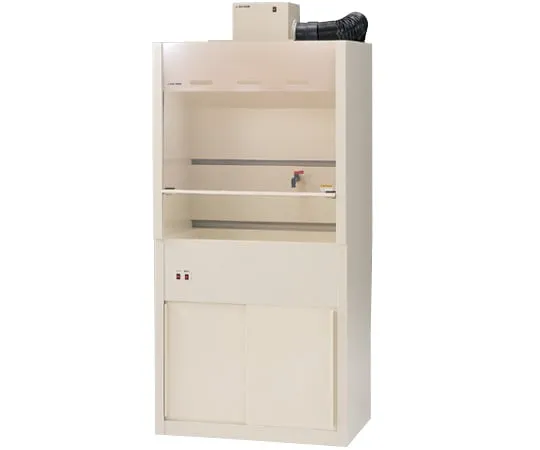

1-7628-11 Compact Draft (PVC) Set, Fan Unit with Displacement Adjustment Function Included HF-800DXNA-L
Product Description
Product Model: 1-7628-11Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-7628-11
Product Brand: AS ONE Corporation
Features
- Exhaust air volume can be adjusted in three stages: high, medium, and low.
- Reduces fan noise and power consumption dep***ing on ***.
- Equipped with a wide sink, it can also efficiently clean ***d instruments.
- LED lighting is ***d to save power.
Spec
- Specifications: Fan Unit with Displacement Adjustment Function Included
- Material: Body/PVC, Door/Transparent PVC
- Sash Opening: 720 x 580 mm
- Weight: 51 kg
- Sink Size: 700 x 370 x 100 mm
- Power: 100 VAC 50/60Hz
- Interior Lighting: LED Lamp (5W) x 1
- Maximum power consumption: 100/120W at 50/60Hz
- Air Volume: Approx. 5m3/min(Door 1/3 Open, Surface Speed 0.5 m/s, No Load) * With Displacement Adjustment Function When Set to Strong * May Change Dep***ing on Work Environment
- Water Supply: Rc1/2 (φ 16 mm Bamboo Shoot Attached/Connection Port on Back of Draft)
- Drain: Φ18 mm Bamboo Shoot Type (With Drain Hose 1 m)
- External Dimensions: 800 x 550 x 1770 * 2 mm (* 2 Including Fan Unit)
- Maximum Air Volume (m3/min): Strong/3.4/3.9, Medium/2.3/2.5, Weak/1.3/1.7
- Maximum Static Pressure (kPa): Strong/0.36/0.5, Medium/0.33/0.42, Weak/0.285/0.28
- Power Consumption (W): Strong/93/110, Medium/75/74, Weak/57/54
- *1 Fan Unit Included
- *Shipping, delivery, installation and assembly costs are required separately. Please contact us.
- *Not suitable for *** when application for local exhaust ventilation is required.
